AD16-16U(PCI)EV

Overview / Features

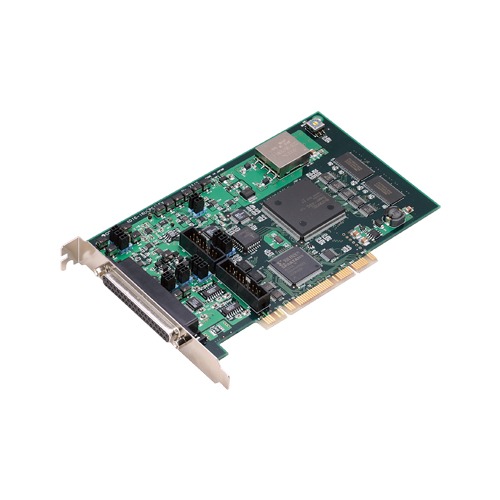

This product is PCI-compliant interface boards that convert analog input signals to digital data (performing analog-to-digital conversion). This product carries high-capacity buffer memory for 16M data for analog input, allowing background sampling to be performed in a variety of trigger conditions. This product also has one analog output channel, four channels for TTL level digital input, and four channels for TTL level digital output. This product is the high-speed, high-precision type thatperforms A-D conversion at a conversion speed of 1µsec per channel and a resolution of 16-bit. Windows/Linux compatible driver libraries are supported.

• Resolution :16-bit, combination speed : 1μsec/ch
  • This product is the high-speed, high-precision type that performs A-D conversion at a conversion speed of 1μsec per channel and a resolution of 16-bit.The product has analog input 16ch, analog output 1ch, digital input/output (TTL level: four each), and a counter (32-bit, TTL level 1ch). In addition, the analog input can be set to single-end input 16ch or differential input 8ch, while the counter is commonly used as the digital input/output.
• Equipped with high-capacity buffer memory for 16MB of data and a variety of sampling control functions
  • FIFO or RING buffer memory for 16MB of data, allowing sampling to be performed as a background task independent of the processing power of the PC. Capable of starting and stopping sampling not only by software commands but depending on the strength of an analog signal (via conversion data comparison) or by detection of a TTL-level signal (external trigger).
• The input of 16 channels is possible(Eight differential input channels)
  • The input of 16 channels the single-end input, or eight channels by the differential input is possible. In addition, It can sets the order of conversion channels. By option, Expansion (32 channels in total) of 16 channels is possible.
• Mixed on-board channels for analog output and digital I/O
  • One channel for analog output, four channels for TTL level digital input, and four channels for TTL level digital output mixed on the board.
• Compact PCI short-size board with a wealth of advanced functions Abundant optional units
  • Providing a variety of options available for extending the functions, including buffer amplifier, simultaneous sampling,insulation & current/thermocouple input, low pass filter, and cables.
• Windows/Linux compatible driver libraries are supported.
  • Using the analog I/O driver makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
