AD16-64(LPCI)LA

Overview / Features

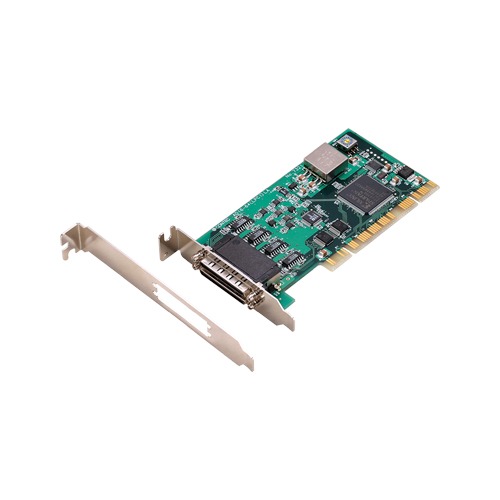

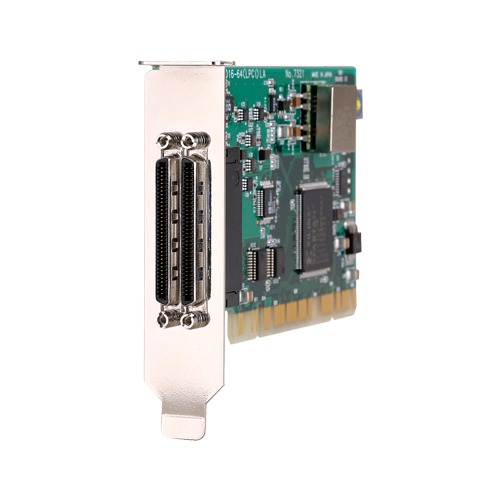

This product is a PCI bus compatible interface board with 64 highprecision, 16-bit analog input channels, digital input and output channels (4 channels each), and a 32-bit counter (1 channel) This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. The board can build a space-saving PC into a cost-effective analog input system. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this board in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

• Multi channel analog input
  • Capable of analog input of 64 single-ended input channels or 32 differential input channels. The selection of the single-ended input and the difference input can be set with software.
• Rich set of basic functions
  • Compact system providing high-precision analog inputs. Equipped with analog inputs, analog input control signals (TTL level, 3ch), digital inputs (TTL level, 4ch), digital outputs (TTL level, 4ch), and counter (TTL level 32-bit, 1ch).
• Substantial control functions
  • Capable of analog input either time-based mode or external-signal synchronous mode.
• Filter function facilitating external signal connection
  • The external control signals for analog input incorporate a digital filter to prevent problems such as chattering.
• Software-based adjustment function
  • Adjustment of analog input can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
• Exchangeable Low Profile size and standard size slots
  • Support for both of Low Profile size and standard size slots (interchangeable with a bundled bracket).
