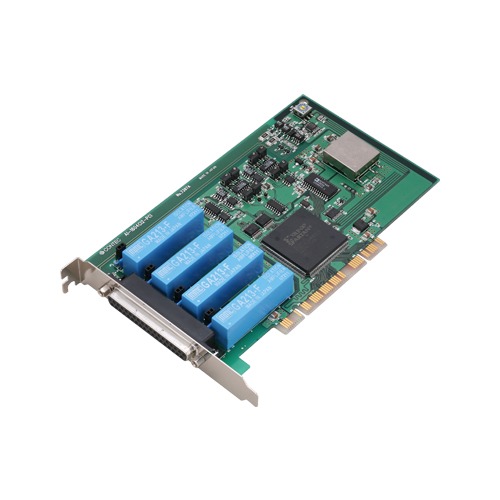

AI-1604CI2-PCI

  • Analog input 4channel, 16bit-resolution, conversion speed 20μsec[50KSPS]/ch
  • Individual isolation model that provides isolation for the bus line with PC and between channels.
  • Control of sampling start/stop can be selected by software, comparison of converted data, external trigger or other factor.
  • Windows/Linux compatible driver libraries are attached.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

SKU: AI-1604CI2-PCI Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a PCI bus supported board that extends the analog signal input functions of a PC. Equipped with four channels of 16-bit analog input, this product is an individual isolation model that provides isolation for the bus line with PC and between channels. Voltage input and current input are set for each channel by jumper, while the voltage range is set by software. Windows/Linux driver is bundled with this product.

  • Analog input 4channel, 16bit-resolution, conversion speed 20μsec[50KSPS]/ch
    • This product has the Analog input (4ch, 16bit, 20uSec). Additionally, the voltage input/current input switch is set by jumper and current range (voltage : ±10V, ±5V, 0 – +10V, 0 – +5V) is set by software for each channel.
  • Individual isolation model that provides isolation for the bus line with PC and between channels.
    • The isolation amplifier provides electric isolation between channels as well as between the inside of the board (PC) and the input circuit. This allows signals with different ground levels to be input to the channels. The isolation voltage is 500Vrms.
  • Control of sampling start/stop can be selected by software, comparison of converted data, external trigger or other factor.
    • Control of sampling stop can be selected forcibly by completion of sampling sessions, comparison of converted data, external trigger, or software. A sampling cycle can be selected from the internal clock (high precision timer mounted on the board) or an external clock (control signal entered from outside).
  • Windows/Linux compatible driver libraries are attached.
    • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
    • Using the dedicated library VI-DAQ makes it possible to create each application for LabVIEW.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector D-SUB 37-pin (Female)
Analog I/O
Input Channels Single-ended 4-ch
Input Range ±10V; ±5V; 0 to 10V; 0 to 5V; 4 to 20mA
ADC Resolution 16-bit
Sampling Rate 20μsec/ch (max.)
Input Buffer Memory –
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory –
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
AI-1604CI2-PCI Analog Input PCI Card / 4ch(16bit 50ks/s) / Channel to Channel Isolation
  • VCCI
Options
Device Drivers
Item Item Name
API-AIO(98/PC) Windows version Analog I/O Driver
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
