AI-1608VIN-ETH

Overview / Features

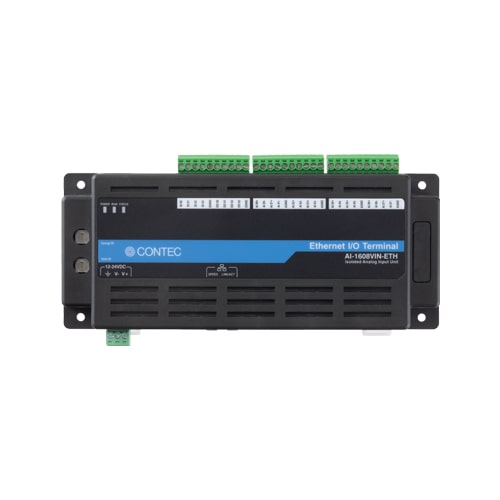

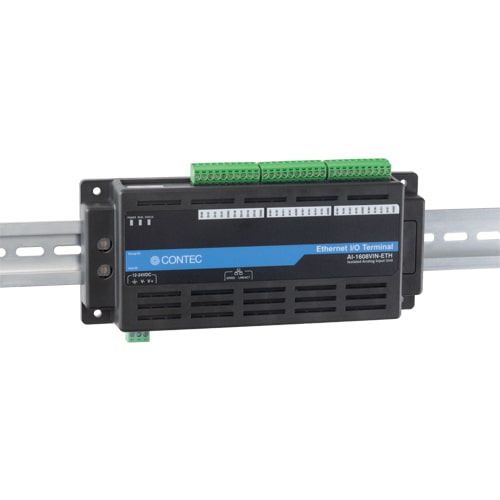

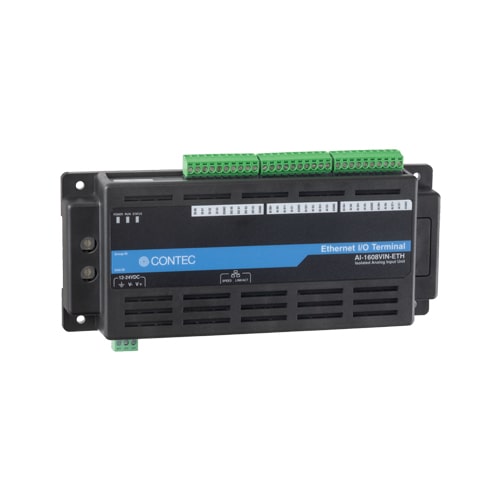

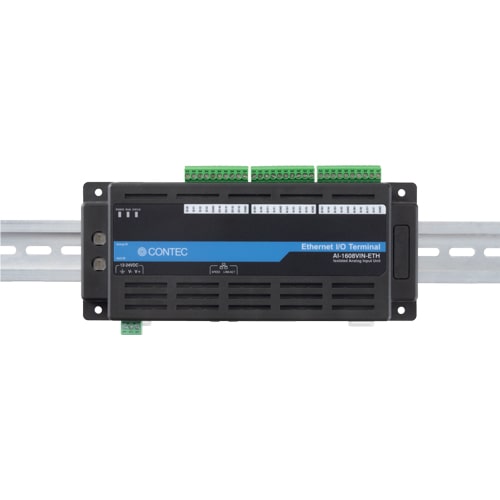

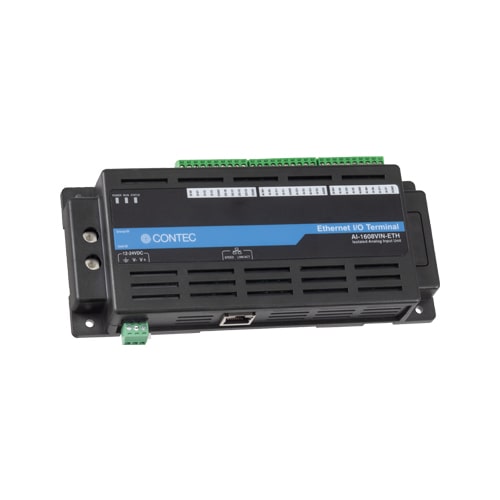

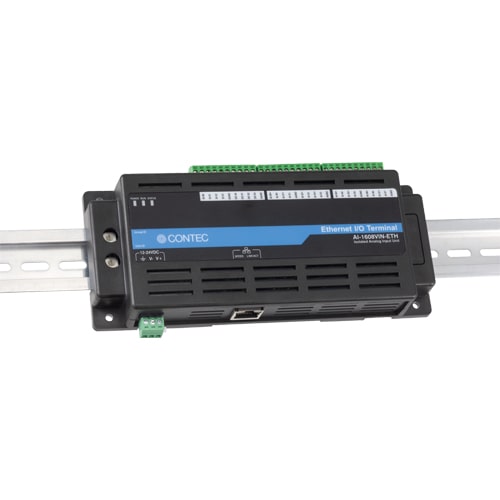

The product is an Ethernet-compatible unit with analog input function. Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail. Windows/Linux device driver is supported with the product.8 channels of 16-bit analog input, and digital input and output (4 channels respectively) are equipped, and these circuits are isolated from the computer. As the analog input supports differential input, accurate measurement can be performed even when potential differences with the signal source occur. The input range supports ±10V voltage input bipolar.

• 8 channels of analog input (voltage input), and 4 channels of digital input and output respectively are contained with high accuracy
  • Analog input (10μsec/ch, 16bit, 8ch), and digital input and output (Input: TTL level 4 channels, Output: Open-collector 4 channels) are equipped. The analog input supports differential input and the ±10V voltage input bipolar.
• Sampling can be driven by a clock or by various triggers
  • Sampling can be started and stopped by software and external (timing of control signals input from external) triggers. The sampling period can be controlled by the internal clock (high-precision timer included in the product).
• Bus isolation with digital isolator, open collector output used for digital output
  • The product isolates the PC from analog input as well as digital I/O by a digital isolator, which improves the noise performance. And the use of open collector output ensures digital outputting with TTL or 12-24 V power by the power of the external device.
• Operable in a wide range of 12 – 24VDC power
  • The product can be operated in the various environments with a wide range power supply of 12 – 24VDC. In addition, the FG terminal is equipped in the power supply connector.
• Windows/Linux support device driver
  • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• Software-based calibration function
  • Calibration of analog input can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
