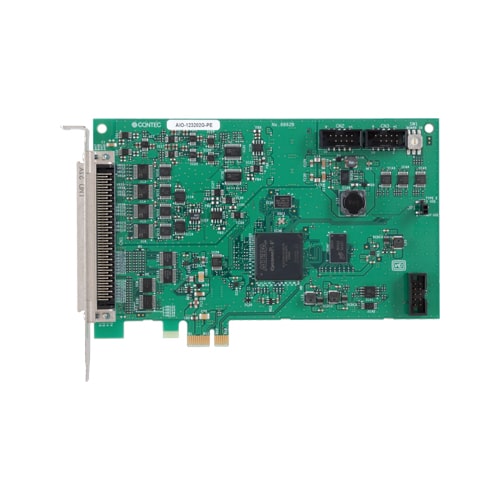

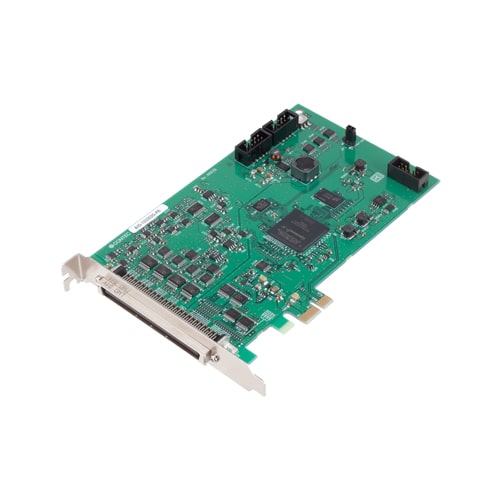

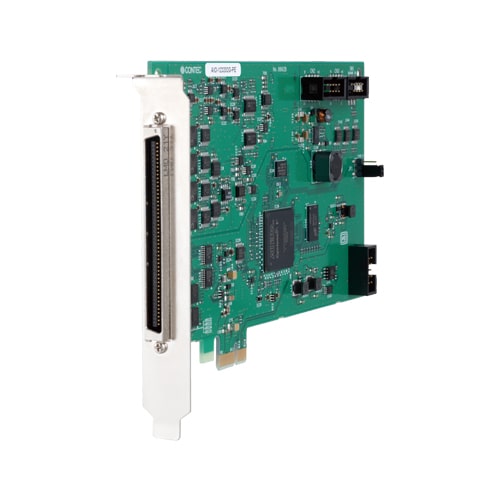

AIO-123202G-PE

Overview / Features

The Analog G Series is a PCI Express-compliant data acquisition (DAQ) device with high-speed, high-precision, multi-channel analog input functionality. In addition to analog input, this multi-function device is equipped with analog output, digital input/output, and a counter, enabling measurement control in a compact, reasonably priced package for systems requiring a variety of signal inputs and outputs. The bus master transfer function also enables continuous sampling for long periods without affecting the device’s maximum conversion speed. This makes the product ideal for component inspection equipment and measurement testing benches that require high-speed data collection over long periods. In addition, thanks to the event controller’s ability to perform hardware-level integrated management of the trigger, clock, and status of each signal input/output, synchronous signal input/output control-difficult to achieve at the software level-is possible. As a result, the product is ideal for factory automation and mixed-signal testing applications requiring low-latency, real-time responsiveness.

• High-performance, multifunction single DAQ device with analog and digital input/output and counter functions
  • In addition to analog input 32ch (12bit, 10μsec/ch), this high-performance multi-function device is equipped with analog output 2ch (12bit, 6μsec), 16 digital inputs and outputs, and 2 counter channels (32-bit), enabling measurement control in a compact, reasonably priced package for systems requiring a variety of signal inputs and outputs.
• Adopts and improves on the functions of the Analog E Series with compatibility for the Analog F Series
  • The Analog G Series was designed as a successor to the best-selling Analog E Series, long recognized as a mainstay of PC-based high performance analog measurement devices. Using the conversion cable (DT-G2E-16/DT-G2E-32) also makes it possible to use the same connector pin assignments as the Analog E Series, allowing for the use of Analog E Series accessories and user design assets without any modifications.
• Bus master transfer function for high-speed, continuous sampling
  • The bus master transfer function, which allows data to be directly transferred to the PC memory, enables continuous sampling for long periods without affecting the device’s maximum conversion speed. When analog input data is transferred using the bus master transfer function, simultaneous transferring of various data is also possible, including analog output, digital input, digital output, and counter data synchronized with analog input clock signals. This makes the product ideal for component inspection equipment and measurement testing benches that require high-speed data acquisition over long periods.
• Built-in event controller for advanced synchronization control
  • The built-in event controller enables integrated management of the triggers and statuses of each signal input and output, enabling hardware-level synchronization control of signal inputs and outputs. As a result, the product is ideal for factory automation and mixed-signal testing applications requiring low-latency, real-time responsiveness
• Synchronized operation of up to 16 devices (connection via synchronization connector)
  • Synchronized operation of up to 16 devices is possible with no need for external wiring or clock synchronization. Simply connect the devices via the synchronization connector and a dedicated cable to enable synchronized operation using the event controller. Synchronized operation is also possible with other Contec devices featuring a synchronization connector (such as the DIO-32DM3-PE and CNT-3208M-PE)
• Wide selection of wiring accessories and expansion modules with various functions
  • Choose from a wide selection of expansion modules offering various functions such as buffer amplification (operational amplification), simultaneous sampling (sample/hold amplification), thermocouple input, gain amplification, and low-pass filtering. Various wiring accessories are also available, including BNC terminal blocks, screw terminal blocks, and noise-resistant cables.
