AIO-160802L-LPE

Overview / Features

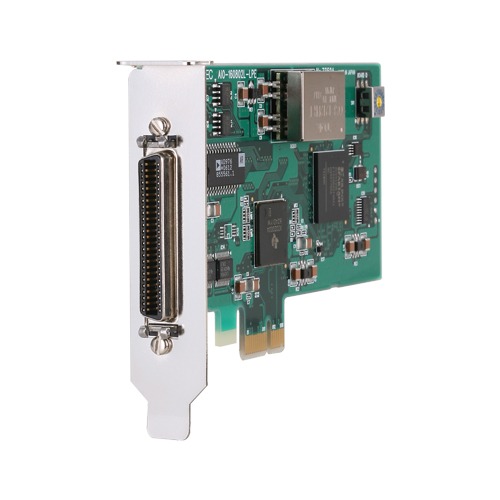

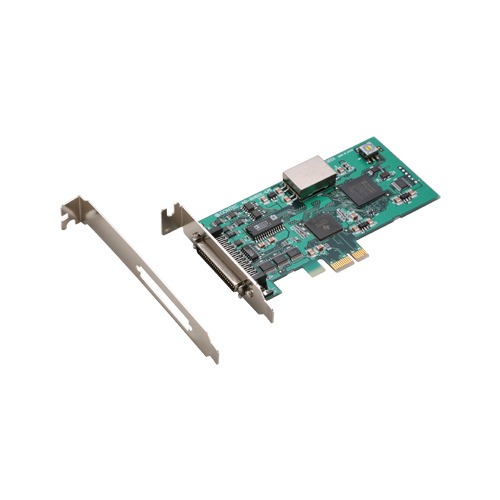

This product is a multi-function interface card of the PCI Express bus conformity that carried digital input and output (LVTTL level, for each 4 points) and counter (32bit, 1ch) as well as analog input of highly precise 16bit. It supports a Low Profile size slot and a standard size slot by changing an attached bracket. Attachment windows/Linux version driver. In addition, the product also supports MATLAB and LabVIEW with plug in of an exclusive library(free download).

• Multi-function
  • High-precision analog I/O can be implemented in a compact system. The series consists of three different models from which you can select the best model to suit your application. The < AIO-160802L-LPE > contains the analog input (16bit, 8ch), analog output (16bit, 2ch).
    All three models include digital inputs and outputs (4 each, LVTTL level) and a counter (32-bit 1ch).
• Analog I/O can be synchronized with an internal timer or external clock
  • Analog I/O can both be performed at fixed time intervals or synchronized with an external signal.
• Buffer memory available for background processing independent of software
  • The cards include buffer memory (1K Word each for analog input and output) which can be used in either FIFO or ring format. This allows analog I/O to be performed independently of the operating state of the PC or software.
• Software-based calibration function
  • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
• Filter function for easy connection of external signals
  • The digital input signals, counter input signals, and the external control signals for analog I/O incorporate a digital filter to prevent problems such as chattering.
