AO-1608L-LPE

Overview / Features

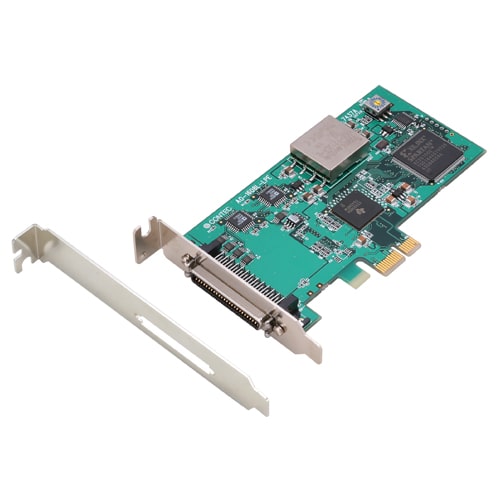

This product is a Low Profile PCI Express bus-compliant interface card used to provide an analog signal output function on a PC. It is multifunction type with 16-bit analog output 8 channels, digital I/O and counter function. This product carries buffer memory for 1K of data, allowing sampling to be performed in a variety of trigger / clock conditions. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for MATLAB and LabVIEW, with dedicated libraries.

• High precision analog output 8 channels, each 4 channels for digital I/O, counter 1 channel
  • has analog output (10uSec, 16-bit, 8 channels), analog output control signal (LVTTL level 3 channels), digital I/O (each 4 channels for LVTTL level), counter (32-bit, LVTTL level 1 channel).
• The start/end of sampling can be controlled by software, an external trigger, etc.
  • You can select from software, an external trigger to control the start of sampling. You can select from completion of sampling for a specified number of sessions, an external trigger or software to control forcibly the end of sampling. The sampling cycle can be selected from the internal clock or an external clock.
• Safety design to adjust output voltage to 0V when power supply is turned on
  • To adjust output voltage of all channels to 0V when the power supply is turned on can lower the unstable voltage and prevent the device connected from fault and malfunctioning when the D/A converter starts.
• Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • The block contains buffer memory (1K data) that can be used in the FIFO or RING format. This allows for background analog output that does not depend on the operation status of the software or PC.
• Digital filter function included to prevent misdetection due to chattering on external signals
  • A digital filter is included to prevent misdetection due to chattering on the control signal (external trigger input signal, sampling clock input signal, etc.), digital input signal and counter input signal(except from external clock input signal and couter gate signal).
