ATBA-8F

Overview / Features

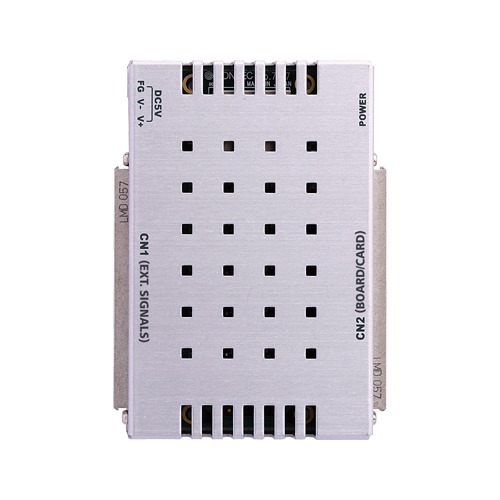

This product is the Extension box which connects with the analog input card of our company, and extends a buffer amplifier function. By using buffer amplifier, it can be cancelable to the cross talk phenomenon generated when measuring the source of a signal that response speed is slowly. Moreover, when the distance from the source of a signal to an analog input card is long, since the influence of cable length can be suppressed, the stable signal measurement is possible.

• Buffered by high speed high accuracy amplifiers
  • Buffer amplifier which used the high-speed and high-precise operational amplifier: It is possible to input an incoming signal into an analog card correctly by adoption of a high-speed highly precise operational amplifier. Since the circuit of high input impedance is adopted as the input stage, influence of the output impedance of a signal source given to measurement can be made small.
• Crosstalk Prevention
  • It is possible to prevent a cross talk phenomenon: It is possible to prevent the cross talk phenomenon generated when a signal source of slowly response speed is measured on an analog input card. Moreover, the measurement error of an analog input card can be lessened.
• Compact designing
  • Compact design which does not become obstructive even if it puts on a desk: Since a connecting cable is separable with a connector and body is a compact design, it is convenient to carry.
• Aluminum Dustproof Cover-Box
  • Lightweight design which used the aluminum case: It is the lightweight design which used the aluminum case for mobile.
