BX-M2510

Overview / Features

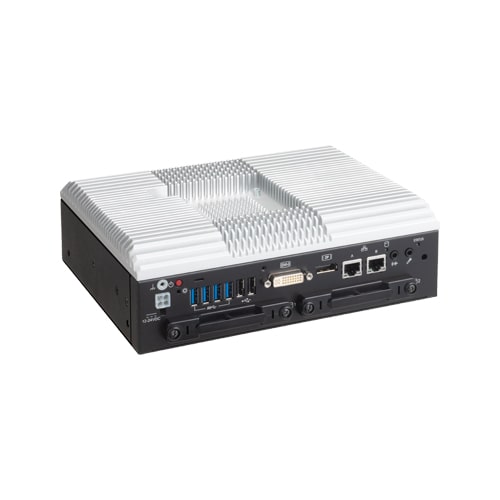

This product is a fan-less and high-performance embedded type computer with 9th generation Intel® CPU processor. The product offers high performance and low power consumption over a wide temperature range (-10°C to +60°C with an airflow of 0.7 m/s without a fan; -10°C to +70°C using the optional fan).The Xeon E-2278GEL, Core i5 9500TE, Core i3 9100TE or Celeron G4900T processor can be selected for the CPU.Various interfaces such as dual LAN / USB 3.2 Gen2 / DisplayPort / DVI-I / RS-232C / DIO and the slot-in 2.5 inches SATA hard disk bay unit being installed, this product is best suited to displaying images including digital signage. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, Contec-customized BIOS allows support to be provided at the BIOS level.and Contec’s unique functions :”Power Failure Protection”, “CONTEC Fast Boot”, “Secure Boot USB Key”, “Disk Copy”, “Self-diagnosis” are available.

Usage Examples

Image processing terminal

Robot terminal

Automated gate built-in terminal

Terminal for facility information

• 9th generation Xeon, Core i5, Core i3, Celeron processor adopted
  • This product adopts the CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
• Operation capable in a wide temperature range between -10 and + 60°C

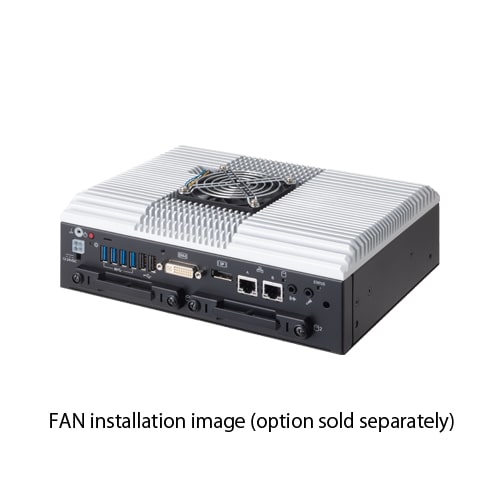

  • Achieves stable operation in a wide temperature range of -10 to +60°C (airflow environment of 0.7m/s) , When using the optional fan (BX-FAN-06), stable operation is possible between -10°C and 70°C.
• “Power failure protection system” features power-off without OS shutdown
  • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system
  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC’s original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility
  • Useful utility of BIOS *1 customized by CONTEC is provided. The “CONTEC Fast Boot” achieves Windows startup in 10 seconds.*2The “Disk Copy” function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*3
    • *1For details, see each setting in the [BIOS Setup] section.
    • *2It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that TXE, TPM, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled.
    • *3For details, please contact our technical support center.
• Major types of peripherals are supported with rich interfaces

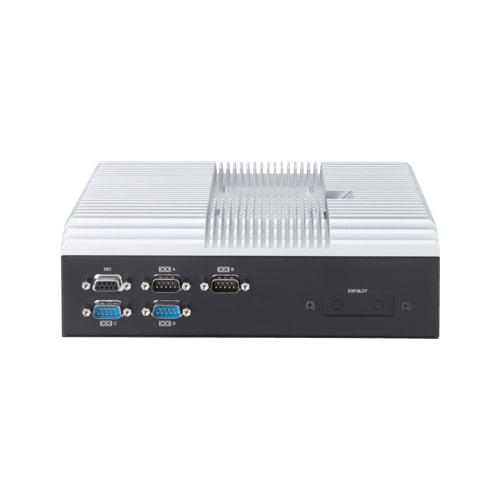

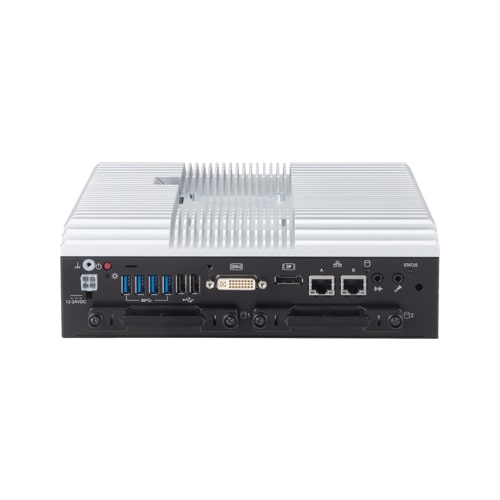

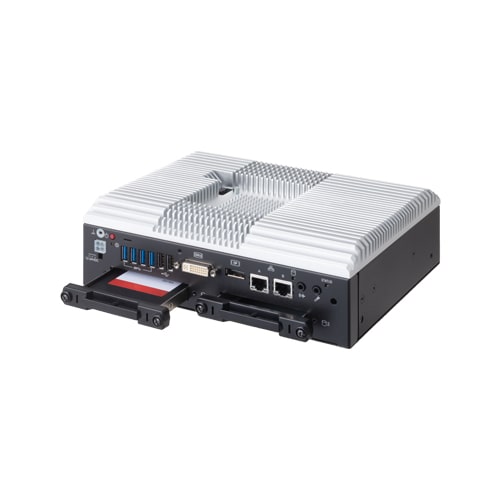

  • It has a variety of extended interface such as DVI-I x 1, DisplayPort×1, 1000BASE-T x 2, USB 3.2 Gen2 x 4, USB 2.0 x 2, serial (RS-232C) x 4 and DIO x 1.It has two slot-in type of 2.5-inch SATA disk slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data.
