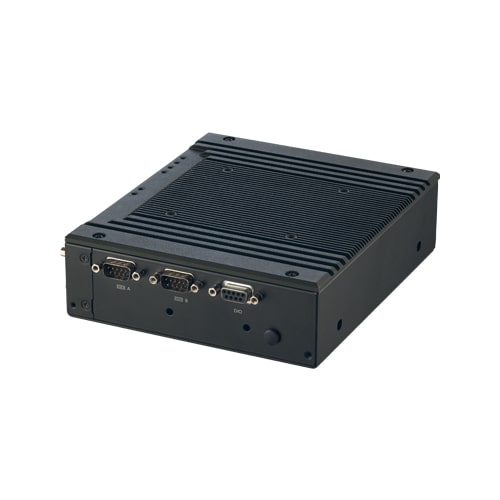

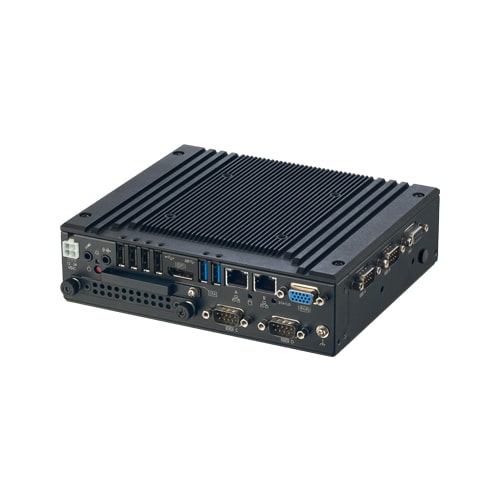

BX-M310-G

Overview / Features

The BX-M310 product is a fan less computer designed for embedded applications, featuring an Intel Atom x6413E processor. Its compact design and wide temperature range make it suitable for use in a variety of settings. The computer includes a DisplayPort and a range of interfaces, including dual USB 3.1 Gen2 type A ports and two 2.5GBASE-T. It also features a built-in M.2 key E socket, which can be used to create wireless LAN and Bluetooth connections.
Thanks to its front panel CFast Type I slot and 2.5″ storage device extraction design that provides product maintenance convenience. The embedded CPU is designed to provide greater reliability under stricter usage conditions.The BX-M310 series has high computing power, display capability, and various expansion slots make it well-suited for factory automation, digital signage, self-service kiosks, and medical applications.

Usage Examples

Factory automation

Semiconductor / LCD manufacturing

Digital signage

Terminal for facility information

• Embedded Intel Atom® x6413E processor adopted
  • This product adopts the CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
• Fanless design reduces maintenance work
  • The product is fanless to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
• Wide range DC input and power management
  • 12-24 VDC (± 10%) ; ATX /AT Mode by jumper setting, and supported Power On by Ring / Wake on LAN function (setting from BIOS).
• Major types of peripherals are supported with rich interfaces

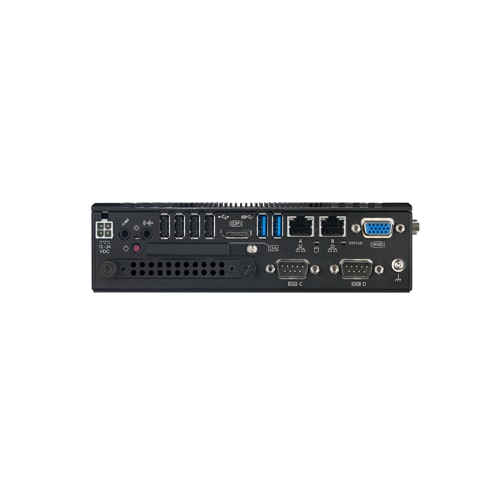

  • Support for modern peripherals such as 2 x USB 3.1, 4 x USB 2.0 DisplayPort, 1 x VGA port, 4 x Serial ports, and M.2 key B / E enables fast data transfer and easy connection to external devices.
• Dual Gigabit LAN ports and M.2 slot
  • Two sets of integrated Gigabit Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity.
