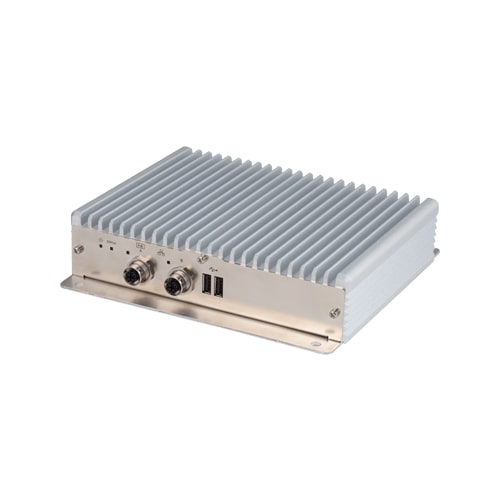

BX-R100

Overview / Features

This product is a fan-less computer for embedded applications and it conforms to EN50155(Class TX) standard. With an Intel Atom processor E3845 of Quad-Core CPU, it can perform stable, high-speed processing of four applications at the same time. The “resource-saving PC” contributes to downsizing and power-saving of equipment to reduce your running cost and to promote energy efficiency. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.

• Railway standard applicable
  • This product obtained various standards required for the railway applications. EN55032, EN61000-3-2, EN61000-3-3, EN55024, EN50155 *, EN45545-2, EN60068-2-1, and EN61373 (* Type test conducted)
• Fan-less design that reduces maintenance and inspection work
  • This product’s spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.
• PoE(IEEE802.3at) power reception and adaptable to a wide-range power of 10.8 – 33.6VDC
  • The product is adaptable to PoE(IEEE802.3at) power reception and capable of dealing with a wide range of power between 10.8 and 33.6VDC in the differing environment. In addition, both power supplies can be switched seamlessly (such as turning on the both power and disconnecting one of them. Applying DC power during PoE operation and disconnecting PoE).

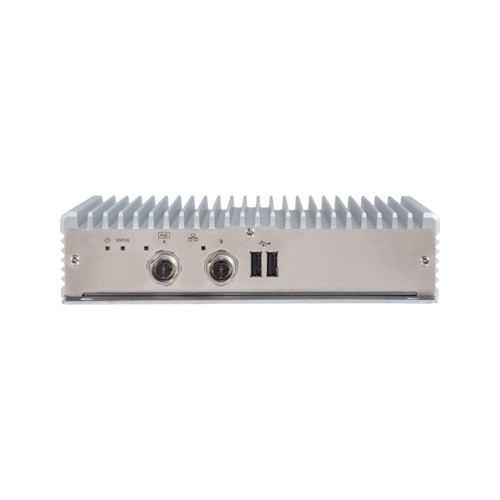

• M12 connecter interface
  • M12 connector is adopted for LAN(1000BASE-T/100BASE-TX/10BASE-T) and for DC power.
    For LAN : M12 8pin X-Coded connector x 2
    For DC : M12 4pin A-Coded connector x 1
• Excellent environmental capabilities
  • Capable of operating in the various ambient temperature environment of with vibration and shock resistance.
    -40 to 70°C (When using 1000BASE-T: -40 to 65°C): with airflow 0.5m/s
    -40 to 60°C (When using 1000BASE-T: -40 to 55°C): without airflow
    Vibration resistance 5G, Shock resistance 100G
• Contributing to running cost reduction and energy efficiency
  • Adopting the low-power platform of Intel® AtomTM Processor E3845 achieves lower power consumption while still ensuring sufficient performance.
