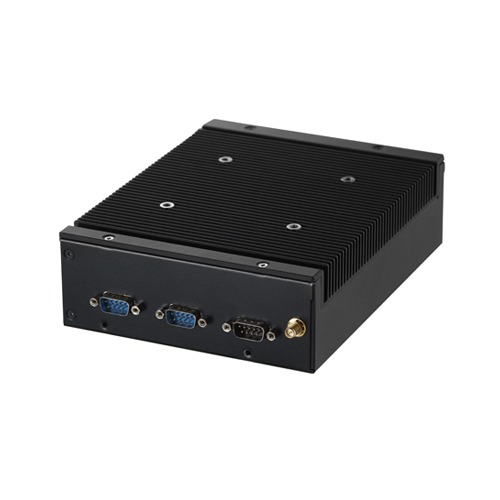

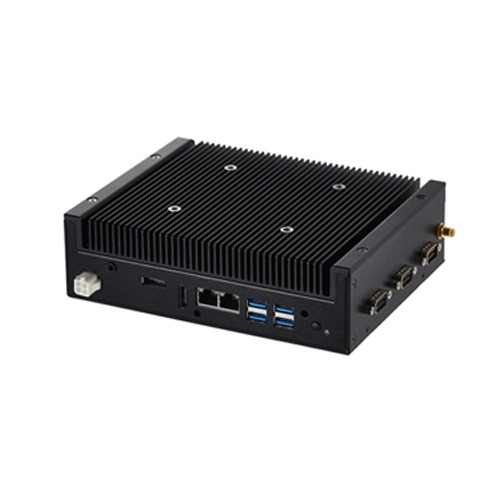

This product is a fanless PC for embedded use based on Intel Core i ULV (Skylake) processors.
| Mounting | DIN Rail Mount; VESA Mount; Wall Mount |
|---|
| Supported OS | Windows 10; Windows 7 |
|---|
| CPU Generation (Development code) | 6th Gen. (Skylake-S) |
|---|---|
| Processor | Core i5-6300U; Celeron 3955U |
| CPU socket | – |
| Memory | 8GB |
| RAS | Hardware monitor (Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |
| Video | 1x DisplayPort; 1x HDMI |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 1x RS-232C; 1x RS-232C/422A/485 |
| Memory card | 1x mSATA |
| Expansion bus | – |
|---|---|
| Drive bay | 1x 2.5-inch shadow bay (SATA) |
| Input voltage | 8 ~ 24VDC |
|---|
| Operating temperature | -10 to 50°C (14 to 122°F) (w/ 0.7m/s Air flow, Extended temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s Air flow w/ standard temp. SSD) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| BX-S2000T-DC28xxxxx | Base model with Intel Celeron 3955U, DDR4 8GB Memory, 2.5″ SATA HDD/SSD |
|
| BX-S2000T-DC38xxxxx | Base model with Intel Core i5-6300U, DDR4 8GB Memory, 2.5″ SATA HDD/SSD |
|
| CPU |
|
|---|---|
| Memory |
|
| Storage |
|
| OS |
|
| Adapter |
|
| Other |
|
* There are combinations that can not be configured. Please inquire in detail.
