CAN-4P-PE

Overview / Features

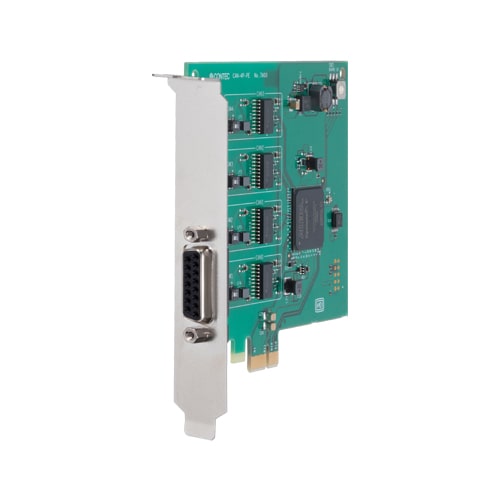

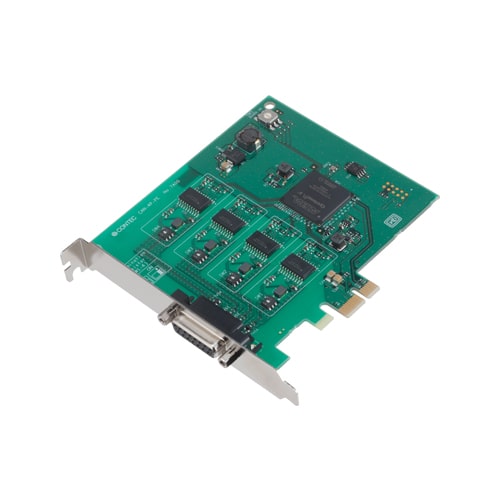

This product is a PCI Express bus-compliant interface board that extends CAN communication functionality to the PC.This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps.Both products are equipped with 4 channels of CAN communication ports on a single board, and each channel and the PC are electrically isolated.Windows/Linux driver is supported with this product.

• CAN2.0B communication function
  • This product is a PCI Express bus-compliant interface board that extends CAN communication functionality to the PC.This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps.Each channel is controlled by an individual CAN controller, allowing each channel to communicate independently of the status of other channels.
• Individuals transmit/receive buffer for each channel
  • This product is equipped with a transmitting FIFO buffer that can store up to 64 messages for each channel individually, and a transmitting FIFO buffer that can store up to 93 messages as a shared buffer for all channels. Additionally, this product is equipped with a receiving FIFO buffer that can store up to 64 messages for each channel individually, and a receiving FIFO buffer that can store up to 170 messages as a shared buffer for all channels. Therefore, even if the load on the CAN communication bus increases, it is possible to prevent messages from being missed.
• Isolates each channel and between computers, and protects signal lines from surges
  • This product is electrical isolation between each channel and between the PC. It can prevent electrical noise between the computer and external circuits and prevent interference between channels. In addition, each signal line is surge protected, so it has excellent noise resistance.

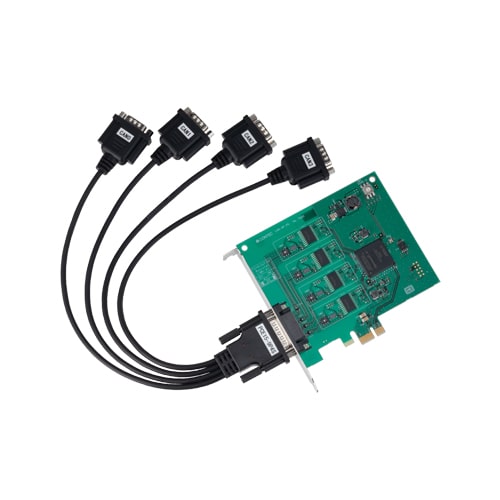

• Terminating resistor and distribution cable included

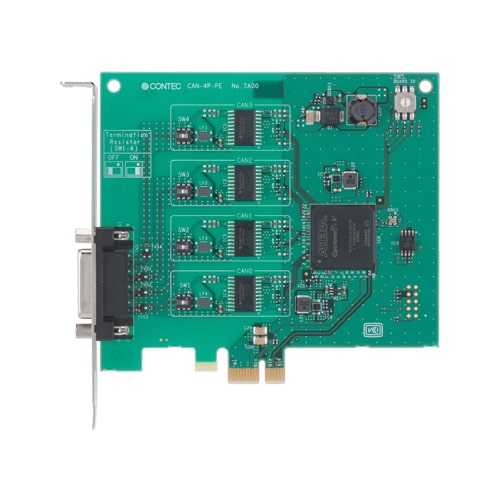

  • The terminating resistor of each channel can be enabled/disabled using the switch on the board. Additionally, a distribution cable that converts CAN communication to a standard D-SUB 9-pin connector is included, making it easy to connect to existing CAN communication networks and CAN communication devices.
• Provide device drivers compatible with Windows/Linux
  • Windows/Linux applications can be created by using the device driver API-TOOL provided on our website. We also provide a diagnostic program that allows you to check the operation of your hardware.
