CM-CL101P40WX-B

Overview / Features

Contec’s CM-CL101P 10.1″ professional monitor series reduces costly churn for device manufacturers and retailers by providing comprehensive revision control and a multi-year production lifecycle. This extended life cycle reduces the costs associated with testing and validation of new configurations due to obsolescence.

The CM-CL101P has a modern, compact architecture and features an integrated 1D/2D barcode scanner (optional, model w/o barcode is CM-CL101P40WX), PCAP multi-touch technology, widescreen resolution, and a sealed front bezel to protect it from dust and liquid intrusion. This versatile design is adaptable to a wide range of industrial and commercial applications including patient monitoring, point-of-care, genomics, point-of-sale, manufacturing, warehousing, and many others.

• Fully integrated Zebra SE3307WA 1D/2D barcode scanner

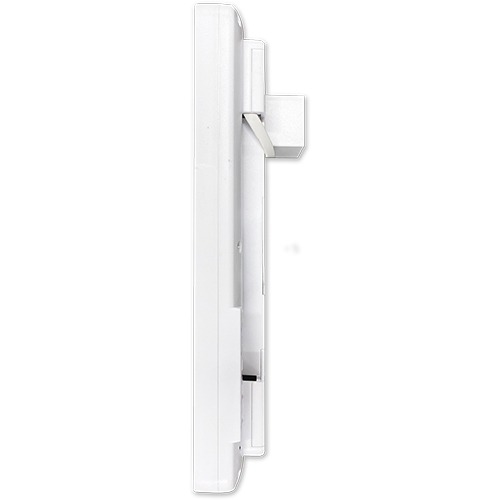

  • One of the most unique characteristics of the CM-CL101P is its fully integrated Zebra SE3307WA barcode scanner (optional). The scan engine is conveniently mounted along the side of the monitor for easy access and will read both 1D and 2B barcodes using a wide-angle field of view for optimal scanning performance. The monitor housing was custom designed for seamless integration with the scanner. The cables tuck neatly into the HDMI/power interface compartment on the back of the unit resulting in a sleek, modern look.

• Front IP65 rated for dust and liquid ingress protection
  • The CM-CL101P features and IP65 rated sealed front bezel to protect it from intrusion from dust, liquids, or fluids common to industrial, medical, or retail environments. This also makes the monitor easy to clean and disinfect when needed.
• Custom firmware supports full-size Microsoft QWERTY keyboard for improved data entry
  • While most monitors use a 2/3 sized keyboard in portrait mode, the CM-CL101P features custom firmware installed on the BIOS that supports a full-size Microsoft QWERTY keyboard in both portrait and landscape mode.
• Versatile mounting options for any application

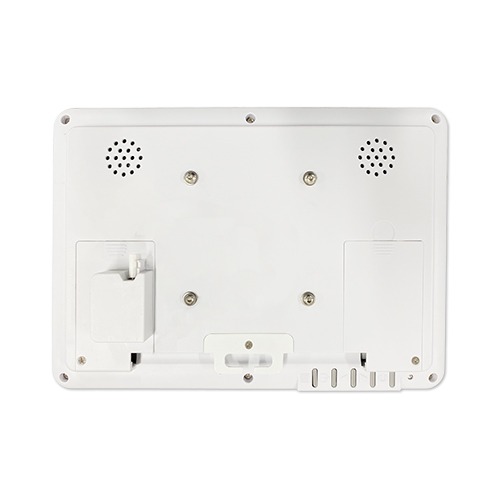

  • The CM-CL101P can be adapted to fit almost any application from retail to medical. Typically used as a human-machine-interface (HMI), the unit can be affixed to any device using a standard VESA mount in either portrait or landscape mode. This versatile design is adaptable to a wide range of industrial and commercial applications including patient monitoring, point-of-care, genomics, point-of-sale, manufacturing, warehousing, and many others.

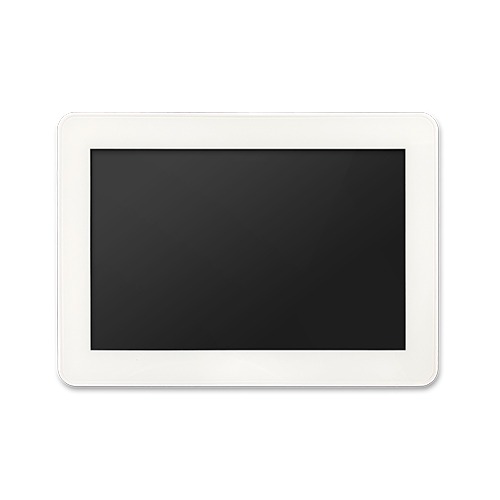

• Compact 10.1″ 1200 x 800 WXGA display
  • Despite its compact size, the CM-CL101P has a modern widescreen PCAP touch display with 1200 x 800 resolution and 400 nits brightness.
• PCAP Multi-Touch supports up to 10-Point touch
  • The projected capacitive touch (PCAP) monitor will support up to 10-point touch input.
