CM-ME121P

Overview / Features

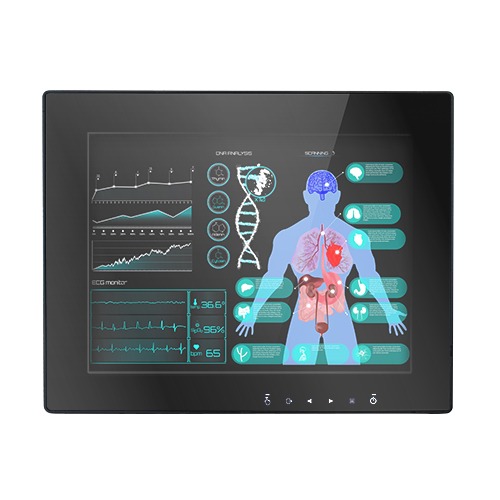

The CM-ME121P PCAP touch medical monitor combines a compact form factor with advanced touch screen technology and a long lifecycle. The display also features a sealed front bezel, industry-leading brightness (500 nits), IEC/EN 60601, 61326, and 55011 medical certifications, and unique upgrades like programmable soft touch buttons, USB hub, and a locking power adapter.

• Ultra-compact 12.1-inch form factor with near-square aspect ratio
  • The ultra-compact 12.1-inch form factor with near-square aspect ratio takes into consideration the limited space available in most labs or patient bedside environments.

• One-click touch enable/disable soft key located on the front of the monitor

  • The one-click touch enable/disable soft key located on the front of the monitor makes cleaning and disinfecting easier than ever and prevents unintended keystrokes.

    Additional one-click soft buttons can be programmed for a variety of functions to streamline operations.

• USB hub to power connected devices and 24V/1.5A medical-grade power adapter with locking mechanism (optional)
  • The USB hub can be used to power connected peripheral devices like a small printer or scanner.

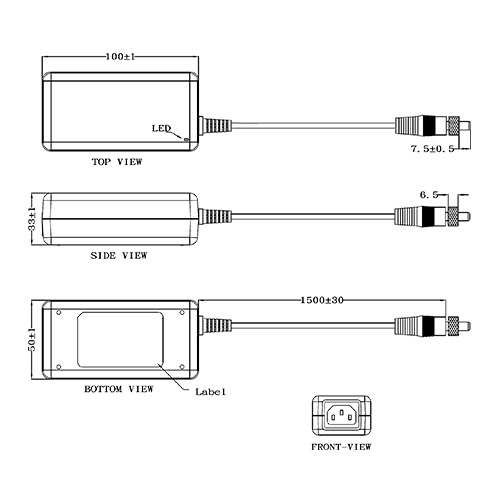

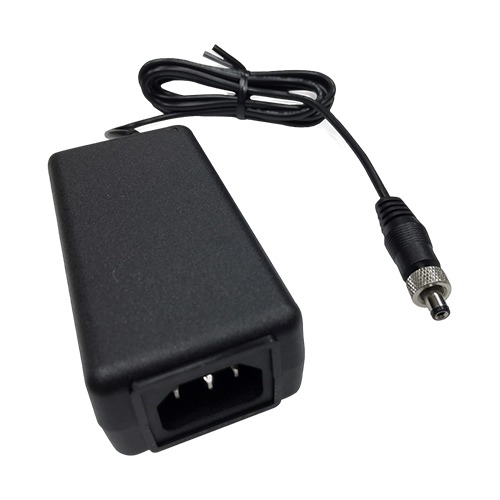

    An optional 24V/1.5A medical-grade power adapter with locking mechanism prevents accidental shutoff from a jostled power cord.

• IP65-rated front bezel
  • IP65-rated front bezel is sealed to prevent intrusion of dust or liquids.

• Advanced Projected Capacitive (PCAP) touch technology
  • Advanced Projected Capacitive (PCAP) touch technology supports up to 10-point touch.

• Long-Life, revision controlled bill of materials (BOM)
