CM-ME185P

Login to See Prices

True-Flat Front IPx5 monitor for easy cleaning and sanitization
DICOM Part 14 compliant with 10 bits LUT
18.5″ medical display with 166 x 768 (16:9) resolution
World class medical safety regulations and certifications
Life cycle management and revision control

SKU: CM-ME185P Category: Medical Grade Displays Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

Overview / Features

True-Flat Front IPx5 monitor for easy cleaning and sanitization
DICOM Part 14 compliant with 10 bits LUT
18.5″ medical display with 166 x 768 (16:9) resolution
World class medical safety regulations and certifications
Life cycle management and revision control

Specifications

Specifications

Mechanical Design

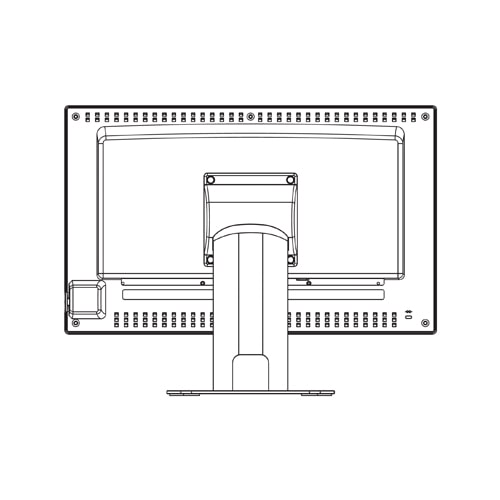

Mounting	VESA Arm; Desktop

Touch Screen

LCD size	18.5-inch
LCD resolution	1366 x 768 (FWXGA)
Touch panel resolution	–
Detection method	Projected capacitive touch (PCAP)

Interface (TP)

Video input	DisplayPort; DVI; Analog RGB
Touch panel input	USB; RS-232C

Power

Input voltage	12VDC; 100 to 240VAC

Environment

Operating temperature	10 to 40°C (50 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CB; CE; FCC Class B; UL

Ordering Informations

Ordering Information

Model	Description	Certification
CM-ME185P45HD (Ordering PN: 22125)	18.5″ 1366 x 768, 450 nits PCAP Touch Medical Monitor, 10 to 40 C

Options
