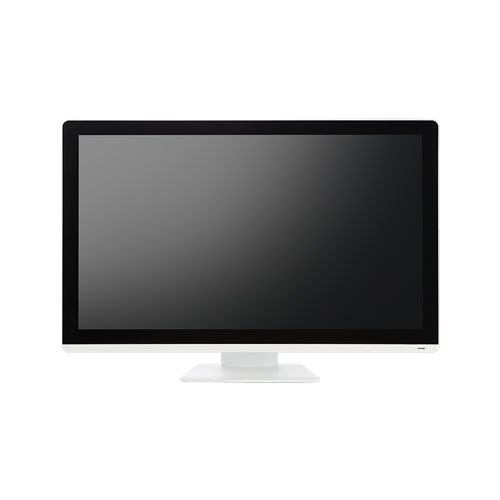

CM-ME270P

Login to See Prices

Elegant and Compact Design
True-Flat Front IP65 Monitor for Easy Cleaning and Sanitization
3000:1 High Contrast Delivering Crisp Image Quality
DICOM Part 14 Compliant with 12 Bits LUT
178o/178o Ultra Wide Viewing Angle
World Class Medical Safety Regulations and Certification

SKU: CM-ME270P Category: Medical Grade Displays Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

Overview / Features

Elegant and Compact Design
True-Flat Front IP65 Monitor for Easy Cleaning and Sanitization
3000:1 High Contrast Delivering Crisp Image Quality
DICOM Part 14 Compliant with 12 Bits LUT
178o/178o Ultra Wide Viewing Angle
World Class Medical Safety Regulations and Certification

Specifications

Specifications

Mechanical Design

Mounting	VESA Arm; Desktop

Touch Screen

LCD size	27-inch
LCD resolution	1920 x 1080 (Full HD)
Touch panel resolution	–
Detection method	Projected capacitive touch (PCAP)

Interface (TP)

Video input	DisplayPort; DVI; Analog RGB
Touch panel input	USB; RS-232C

Power

Input voltage	24VDC

Environment

Operating temperature	10 to 40°C (50 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CE; cTUVus; FCC Class B

Ordering Informations

Ordering Information

Model	Description	Certification
CM-ME270P30FH (Ordering PN: 22217)	27″ 1920 x 1080, 300 nits PCAP Touch Medical Monitor, 10 to 40 C

Options
