COM-8C-LPCI

Overview / Features

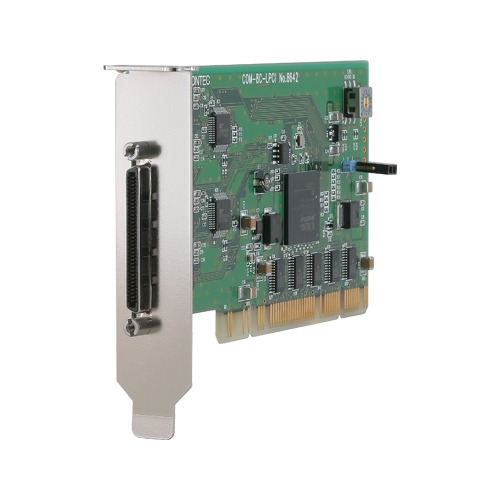

This product is a PCI bus-supported board of Low Profile size designed for extending RS-232C compatible serial communication functionality on your PC. The product has eight RS-232C communication port. With a 128byte built-in FIFO buffer for transmission and reception of each channel, the product supports a baud rate of up to 921,600bps. Windows/Linux device driver is supported with this product.

• Max. 921,600bps RS-232C Serial Communication
  • The COM ports of this product support up to 921,600 bps. The product has eight RS-232C-standard serial port.
• Possibly used as Windows, Linux-standard COM ports
  • Combining the product with our device driver COM-DRV makes it possible to use the product in the same manner as the COM ports of a PC. This product supports communication using DCB structures in the Win32 API and Linux-standard system calls. In addition, supplies a diagnostic program to confirm hardware operation and to perform a communication test with equipment.

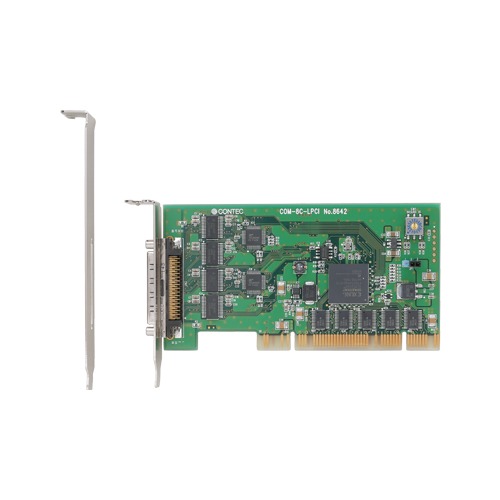

• Support for Low Profile size slot / standard size slot (bundled with bracket)
  • Bundled with each bracket for Low Profile size slot / standard size slot. Exchanges it for the standard size bracket when mounting on the standard size slot.
• Up to 16 boards can be installed
  • Up to 16 boards of the same model can be mounted on a single PC.
• Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive
  • Equipped with a buffer memory for transmitting 128 bytes and receiving 128 bytes for each channel. These are FIFO format, useful for high speed communications and to reduce the load to the CPU when transmitting/receiving.
• The control line for RS-232C can be controlled and monitored by software
  • The control lines for RTS, CTS, DTR and DSR can be controlled and monitored using software.
