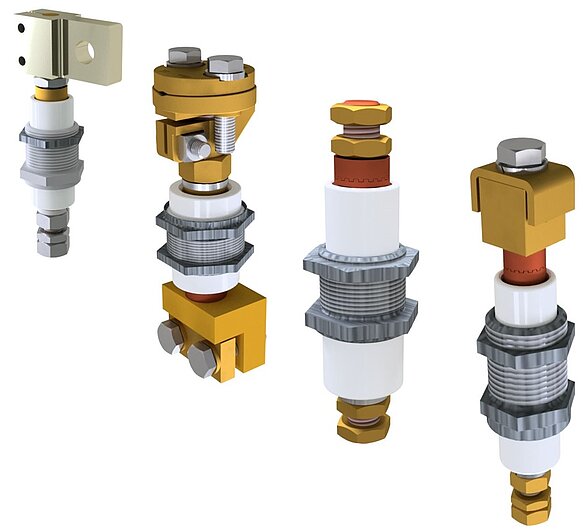

Conductor Bushings series TOS

The insulators of our flameproof conductor bushings are made from ceramic. They come with a removable bolt made out of copper or brass.The screw-in threads of the insulators are available from M16 to M42. The bolt diameter can be chosen with a variety of connection combinations.The conductor bushings of the TOS-series are suitable for ambient temperatures between –50 °C and +130 °C. The rated voltage is from 690 V up to 1600 V and the continuous current of the conductor bushings is from 16 A up to 630 A.
