CONPROSYS HMI System (CHS)_img1CONPROSYS HMI System (CHS)_img1

CONPROSYS HMI System (CHS)

  • Multi-device Support for Anytime, Anywhere Access
  • Programless System Development. Drag and Drop Production on the Browser
  • Accelerate “visualization” with abundant graphic components
  • Support Not Only PLC but Also MQTT Which Is Attracting Attention
  • Meets Both Cloud and On-premise Needs
  • Easy-to-introduce Pricing System by System Scale
SKU: CONPROSYS HMI System (CHS) Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

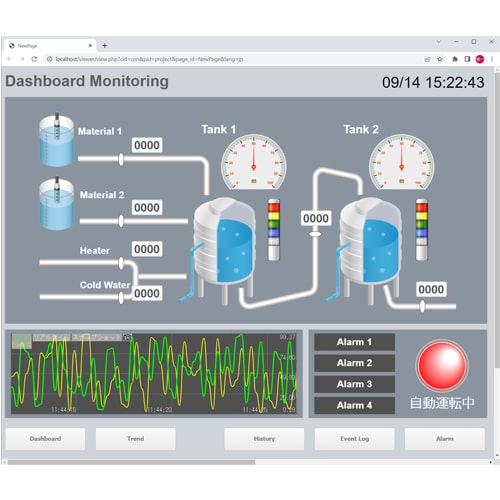

CONPROSYS HMI System is Contec’s SCADA software that enables programming-free creation and operation of remote monitoring and management systems for a variety of applications, including data collection and control using Contec’s CONPROSYS™ industrial IoT solutions as well as MQTT (Message Queuing Telemetry Transport) communication-compatible IoT gateway devices from other companies, alarm detection and notification, and displaying process charts, trend graphs, and reports on HMI monitoring screens.

CHS demo site

  • Multi-device Support for Anytime, Anywhere Access
    • From the installed browser, it can be used not only on PCs but also on tablets and smartphones. It does not depend on specific platforms such as OS/hardware.

  • Programless System Development. Drag and Drop Production on the Browser

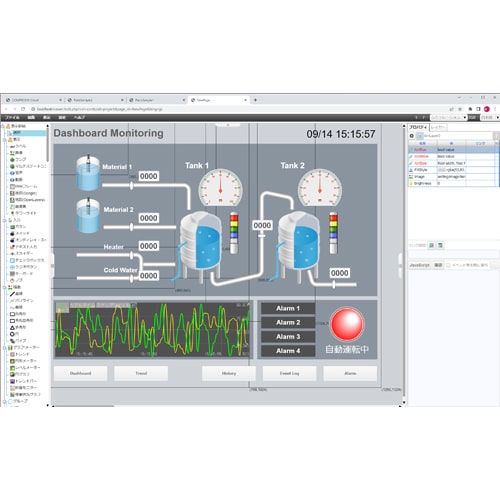

    • Web-based system development and execution. No need to install specialized software. Screens such as process flow charts can be created by dragging and dropping on the browser. You can operate data and control equipment from parts on the browser, such as collected data/database and information link without programming, contributing to system construction in a short period of time.
  • Accelerate “visualization” with abundant graphic components

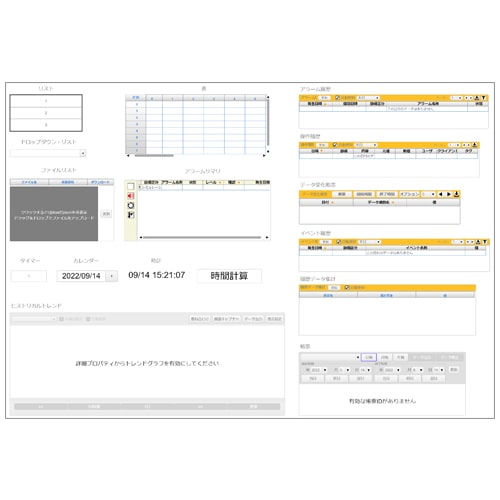

    • Over 60 graphic components (lamps, labels, trends, meters, lists, tables, etc.) are available. It realizes “visualization” of data without programming. Components such as alarm summary, alarm history, historical trend, report, data change history, operation history, instrument monitor, and map are also available.

  • Support Not Only PLC but Also MQTT Which Is Attracting Attention

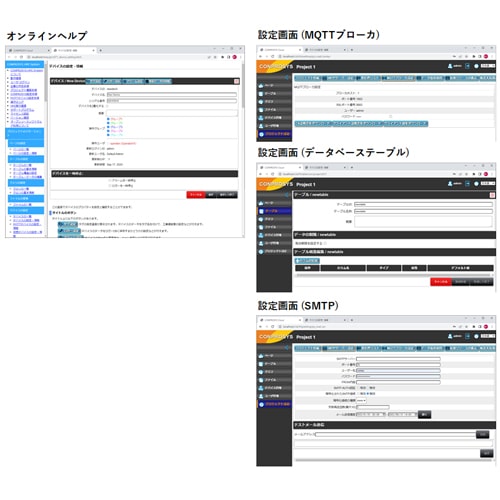

    • Data can be collected from PLCs of multiple companies via CONPROSYS™ devices, stored in the client’s database, and operated. In addition, it supports MQTT, which is attracting attention in the IoT field as a lightweight protocol, and also supports IoT gateways with MQTT communication functions. Since the MQTT broker is installed, there is no need to prepare a separate MQTT broker.
  • Meets Both Cloud and On-premise Needs
    • Cloud services can be built simply by installing CHS on Windows servers such as AWS and GCP. It is also possible to build an on-premises monitoring environment by installing it locally on Windows. It is possible to avoid the security risk of cloud operation and realize remote monitoring without paying a pay-as-you-go fee.

  • Easy-to-introduce Pricing System by System Scale
    • For the license fee, you can choose the most suitable fee structure according to the system scale (number of projects). A trial version is also available for confirmation before purchase. We also provide a “demo site” where you can experience the convenience of the development environment.

Specifications

Specifications
Supported OS
Supported OS Windows 11 Pro; Windows 10 Pro（limited to trial purpose）; Windows Server 2022; Windows Server 2019; Windows Server 2016
Supported Series
Supported Series CONRPOSYS M2M Controller; CONPROSYS M2M Gateway
Applications

CONPROSYS HMI System (hereinafter referred to as CHS), which is a Web HMI / SCADA software, allows you to build a supervisory control system by connecting each device such as a remote supervisory controller (RTU) connected to a sensor to a communication/network.

  • For IoT data management and visualization

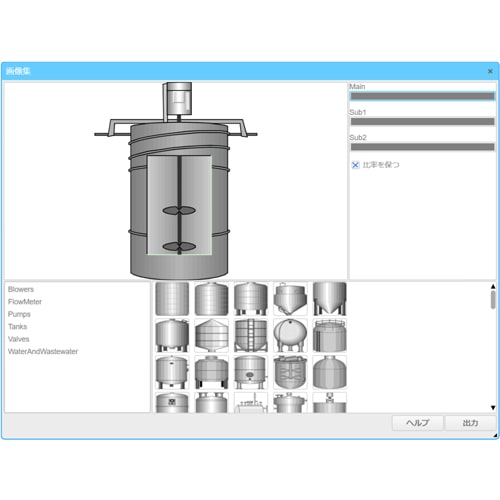

    • CHS manages each device of CONPROSYS and devices that support MQTT protocol, it can collects data from devices, detects alarms, and sends alarm notifications by email. The collected data is recorded in the server, and the log data can be displayed on the HMI monitoring screen of the browser as trend graphs and reports. Approximately 60 different components such as ramps, labels, trends, meters, lists, and tables visualize data, and switches, check boxes, buttons, sliders, knobs, text input, and other components send commands to your device. We also provide an image library that can draw the animation screens required for equipment monitoring in a very short time.

  • For remote monitoring of environment and sluice equipment
    • Each device of CONPROSYS collects various environmental data and is capable of data communication not only through a wired network but also through a wireless network such as 3G/4G/LoRa. It communicates with CHS by MQTT or HTTPS. For example, by monitoring sensor information such as air quality, water level, and water quality, and the opening/closing status of water gates, CHS can dynamically visualize the status of acquired data on a browser map. In addition, the collected data can be displayed as a historical trend overlaid with the past data, and the daily, weekly, and monthly reports can be displayed on the browser and downloaded as a formatted excel file, which can be used for environment and equipment. You can easily build a status management and monitoring system.

  • Factory Automation
    • CONPROSYS Gateway series is equipped with a standard function that not only allows you to directly acquire sensor information, but also PLC data from each vendor. It can communicate with various PLCs such as Mitsubishi, Siemens, OMRON and send the acquired data to CHS. CHS displays the collected data on the browser screen or accumulates it in a database and links with the parts such as switches, knobs and instrument monitors displayed on the browser screen. The change data operated from the parts can be written in the PLC and the actuator etc. can be controlled.
      Gateway series can also be linked with a control system that uses a low-priced remote I/O CONPROSYS nano series that can execute PLC programs, and by combining with CHS, it is possible to build a supervisory control system at the manufacturing site.

Ordering Informations

Available as an annual subscription license. Please contact us if you would like a perpetual license.

Trial Software Project 1 Project 2 Project 5 Project 10 Project 25 Project 50
Maximum Projects 1 1 2 5 10 25 50
Subscription Price
(US$/Year, excl. VAT)		 Free $1,365 $2,595 $6,140 $10,910 $23,865 $40,910
Maximum Pages
per Project		 3 20 40 100 200 500 No limit
Maximum Devices
per Project		 1 2 4 10 20 50 No limit
Maximum Data Tags
per Project		 16 300 600 1500 3000 7500 No limit
Order – Temporarily unavailable
Installer
Server Operating Environment
  • Supported OS: Windows Server 2022 (recommended) / Windows Server 2019 / 2016 or Windows 11 Pro, Windows 10 Pro
  • Supported browsers: Modern browsers that support HTML5 (Recommended browsers: Google Chrome 47 or later, Mozilla Firefox 42 or later)
  • Supported hardware: CPU with 4 cores or more / 16GB or more of internal memory, 200GB or more of free space
Limitations
  • The installer is the same for both the trial version and commercial version.
  • The trial version stops data processing after 1 hour of continuous operation. You can try all functions.
  • A license is required for each installation. Virtual machines and guest operating systems also require licenses. When building a cluster system, a license fee of 30% of the selected project will be added for each additional computer (OS).
  • The tag number limit is the total number of real I/O channels. Does not include internal variable tags (unlimited).
  • Depending on the resources of the computer used (CPU performance, memory, storage, etc.), there may be practical limitations.
  • During the contract period, we will provide product updates (patches such as bug fixes) and upgrades (product improvements/enhancements).
  • Installation media and backup media are not provided.

You can purchase at MyCommerce. Order information will be sent via HTML email. Please use the email address (MyCommerce My Account) where you can receive HTML email to complete the purchase procedure. MyCommerce FAQOpens in new window. You can check your order information in MyCommerce My Account.
You can cancel your subscription from your account. If you choose to pay by credit card or PayPal, the lisence fee will be withdrawed automatically every year. If you choose bank transfer, you will need to purchase the license at the time of extension .
