CPS-AI-1608ALI

Overview / Features

This product is an extension module with analog input interface and operates along with the CPU module configurable type controller of our CONPROSYS series. It has 8channels of analog input per module. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

• Bus-isolated analog input module providing highly accurate measurement
  • This product contains bus-isolated analog input (16bit, 8ch) that measures with a high degree of accuracy. It supports differential input and is capable of precise measurement of voltage with potential differences.CPS-AI-1608ALI features the function of the analog current input (16bit, 8ch).
• Compact Design
  • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
• Adaptable to a wide range of temperature between -20 and 60°C
  • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

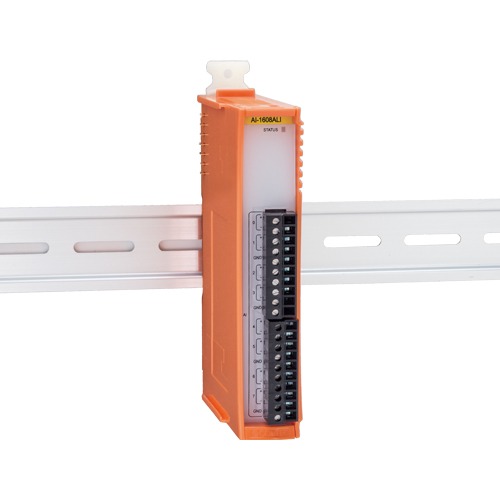

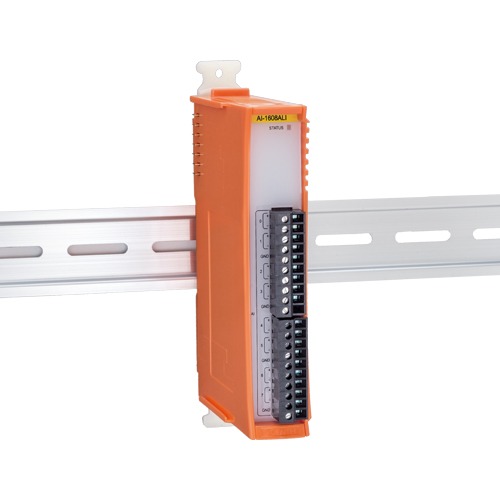

• Installation easy with two pieces of terminal support and DIN rail
  • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.

See more details of M2M/IoT Solution CONPROSYS Series
