CPS-MC341-DS11-111_img1CPS-MC341-DS11-111_img1

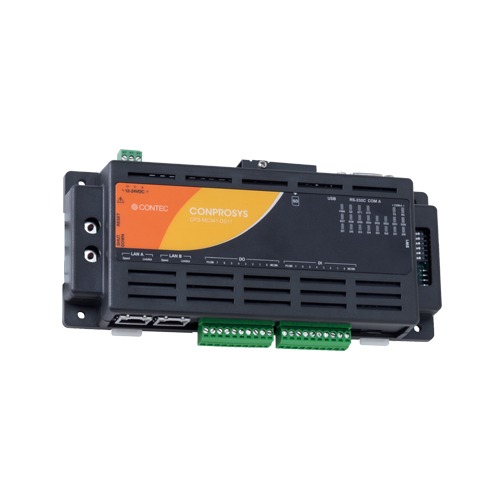

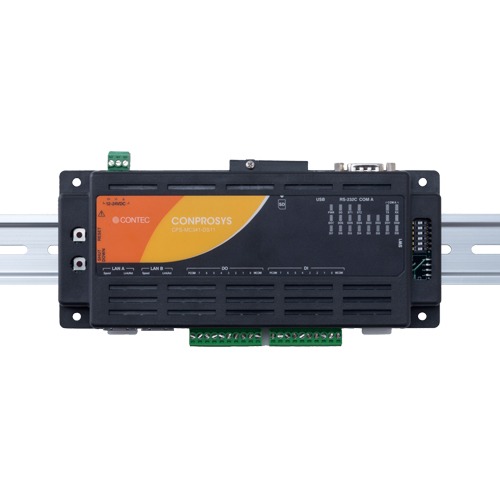

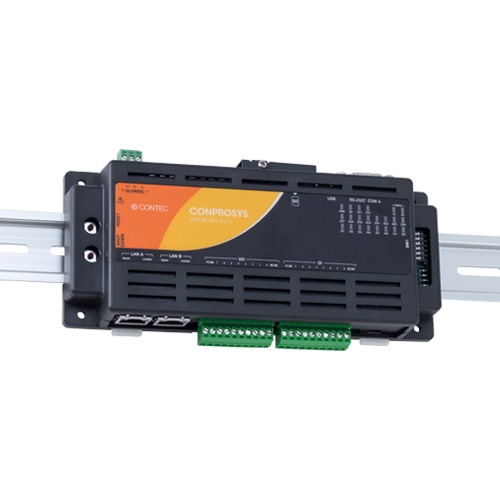

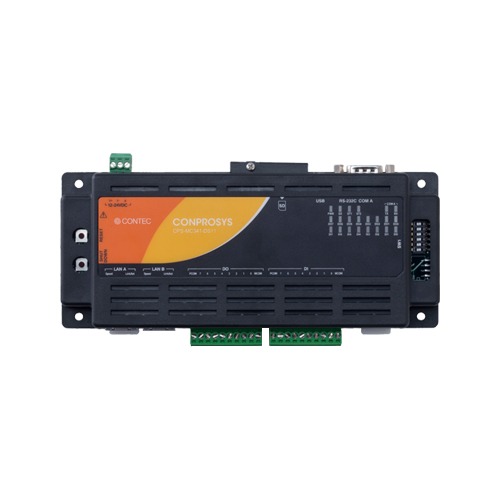

CPS-MC341-DS11-111

  • Measurement and Upload
  • Simple Router Function
  • Web Monitoring and Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and +60°C

Data Sheet PDF

SKU: CPS-MC341-DS11-111 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a M2M controller with RS-232C, isolated digital input/output, and LAN interface.It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device.You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: CE, FCC, UL and VCCI.

  • Measurement and Upload
    • The product measures data with an external sensor and uploads them to the Cloud server.
  • Simple Router Function
    • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
  • Web Monitoring and Web Task Script
    • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
  • Message Communication Function
    • With the RS232C or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
  • Compact Design
    • Compact design, 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.
  • Adaptable to a temperature range between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Specifications
Controller Unit
Series CONPROSYS M2M Controller
Communication Ports Ethernet (LAN)
Programming CONPROSYS VTC
Stack bus –
Function Data transfer (https); Modbus/TCP slave
Digital I/O
Input Channels 8-ch
Output Channels 8-ch
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 200μsec (max.)
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) 12 to 24VDC
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply –
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 110 ~ 115,200bps
Isolation Property
Transmission Method

Ordering Informations

Ordering Information
Model Description Certification
CPS-MC341-DS11-111 CONPROSYS M2M Controller – Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-232C
  • CE marking
  • FCC compliant
  • UL
  • VCCI
Options
SCADA Software
Item Item Name
CONPROSYS HMI System (CHS) Web HMI / SCADA Software
Power Supply / AC Adapter
Item Item Name
CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
Storage
Item Item Name
SD-4GB-A 4GB SD Card
Other Accessories
Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)
CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)
