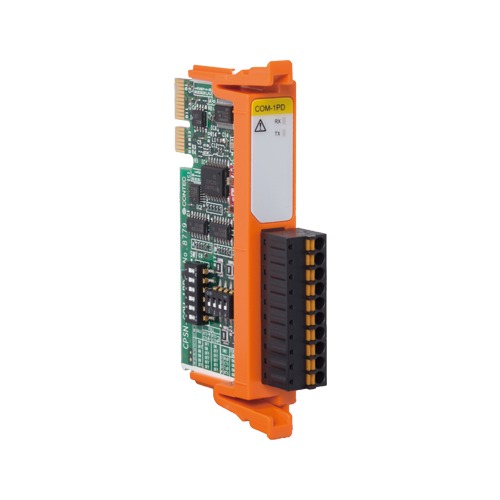

CPSN-COM-1PD_img1CPSN-COM-1PD_img1

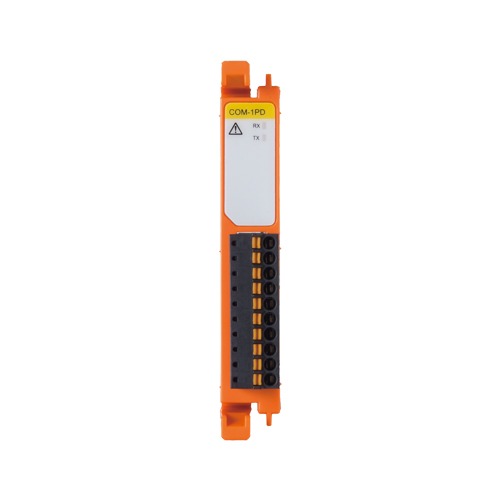

CPSN-COM-1PD

  • RS-422A/485 serial communication and support maximum of 921,600bps
  • Easy installation and removal
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Equipped with the LED for an operation check
  • No electrolytic capacitor

Data Sheet PDF

SKU: CPSN-COM-1PD Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is an expansion I/O module that adds a COM port complied with RS-422A/485 to the CPU unit of the CONPROSYS nano series.
One channel of RS-422A/485 communication port is supplied.

  • RS-422A/485 serial communication and support maximum of 921,600bps
    • This product has one channel of a serial port complied with RS-422A/485. The baud rate can be set from 4 to 921,600bps.
  • Easy installation and removal
    • This product can be installed in and removed from the CPU unit without any tools.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • Equipped with the LED for an operation check
    • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
  • No electrolytic capacitor
    • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

Specifications

Specifications
Add-on Module
Series CONPROSYS nano(Modular remote I/O)
Bus Specification CONPROSYS nano slot
Size CONPROSYS nano 1U
Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
Serial Comm.
Number of Channels 1x RS-422A/485 [ASYNC]
Transmission Speed 4 ~ 921,600bps
Isolation Property Isolated & Surge protection
Transmission Method RS-422A/485 [Asynchronous]
Supported OS
Supported OS –
  • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

Ordering Informations

Ordering Information
Model Description Certification
CPSN-COM-1PD Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection
  • CE marking
  • FCC compliant
  • VCCI
Options
Coupler module
Item Item Name
CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
Controller unit
Item Item Name
CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
