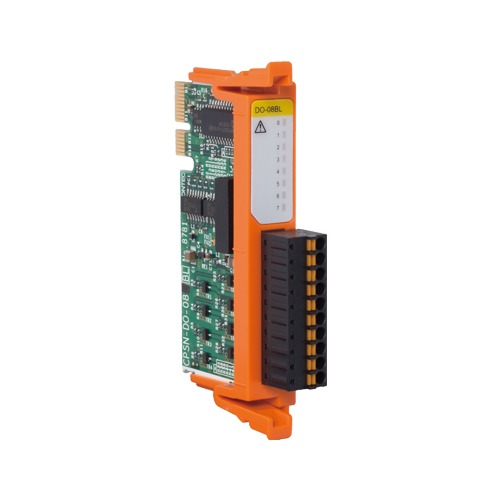

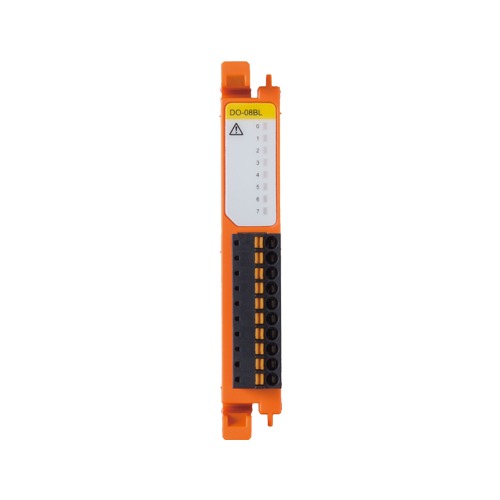

CPSN-DO-08BL

Overview / Features

This product is an expansion module that adds a digital output interface to the CPU unit of the CONPROSYS nano series. CPSN-DO-08BL has the opto-coupler isolated Output 8 channels (current sink output) whose response speed is 200μsec or less. This product’s internal circuit also has a built-in power supply, so no external circuit power supply is necessary.

• Opto-coupler isolated output with internal circuit power supply

  • This product has the opto-coupler isolated Output 8 channels (current sink output) whose response speed is 200μsec or less.
    The CPSN-DO-08BL’s internal circuit has a built-in power supply, so no external circuit power supply is necessary.

• Output circuits include zener diodes for surge voltage protection.
  • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 500mA to the maximum per channel.
• Easy installation and removal
  • This product can be installed in and removed from the CPU unit without any tools.
• Adaptable to a wide range of temperature between -20 and +60°C
  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• Equipped with the LED for an operation check
  • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor
  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
