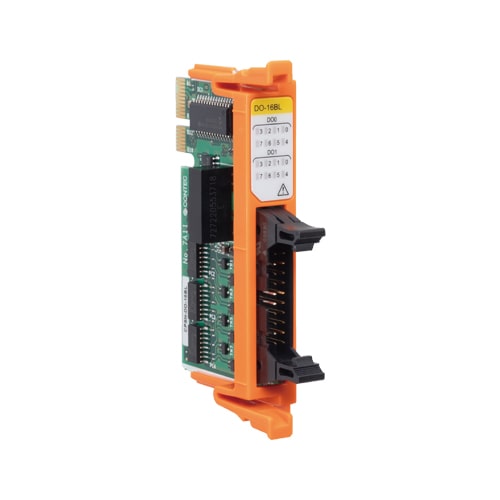

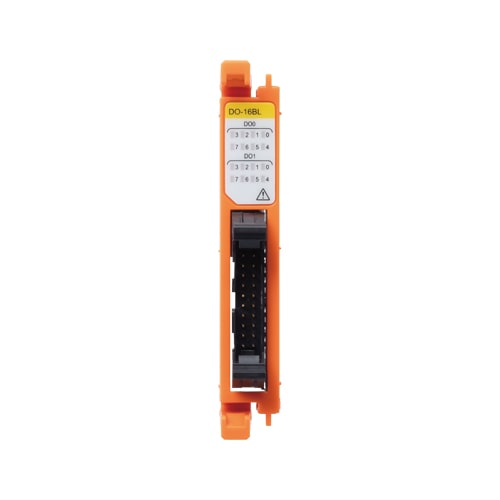

CPSN-DO-16BL

Overview / Features

This product is an expansion module that adds a digital output interface to the CPU unit or USB I/O Unit – Module Type of the CONPROSYS nano series. CPSN-DO-16L has the opto-coupler isolated Output 16 channels (current sink output) whose response time is 200µsec or less. This product can also be used with an external circuit power supply of 12 to 24 V. CPSN-DO-16BL has the opto-coupler isolated Output 16 channels (current sink output) whose response time is 200µsec or less. This product’s carries an opto-coupler driving power supply.

• Opto-coupler isolated Output
  • This product contains 16 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less.
• Internal circuit power supply
  • The CPSN-DO-16BL ‘s carries an opto-coupler driving power supply.
• Output circuits include zener diodes for surge voltage protection
  • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 500mA to the maximum per channel.
• Easy installation and removal
  • This product can be installed in and removed from the CPU unit or USB I/O Unit – Module Type without any tools.
• Adaptable to a wide range of temperature -20 to 60°C (-4 to 140°F)
  • The product is capable of operating in the temperature -20 to 60°C (-4 to 140°F), It can be installed in the various environments.
• No electrolytic capacitor
  • A long life has been achieved by not using electrolytic capacitors, which are short-life components.
