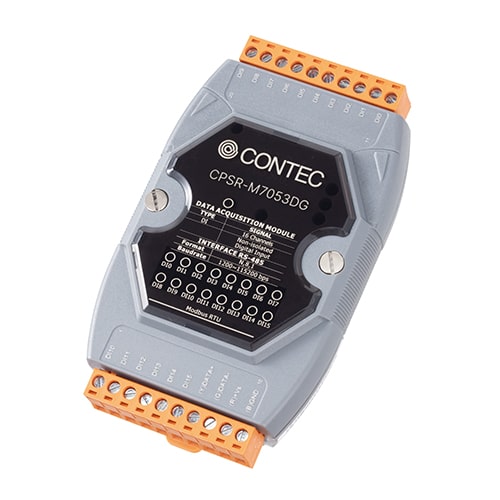

CPSR-M7053DG

Overview / Features

The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.

• RS-485 based Robust remote I/O module for Modbus-RTU protocol : 16ch Digital Input (Counter)
  • RS-485 (Modbus-RTU) based remote I/O with 16ch Digital Input (Counter). Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable.
• Designed for a wide operating temperature range of -25 to 75°C (-13 to 167°F)
  • Designed to withstand a wide operating temperature range of -25 to 75°C (during operation) (-13 to 167°F). Robust design that can be used in outdoor environments with large temperature changes.
• Dual watchdog function monitors module and communication failures
  • Dual watchdog function monitors module and communication failures. If the module detects an operational fault, it will automatically reset.
