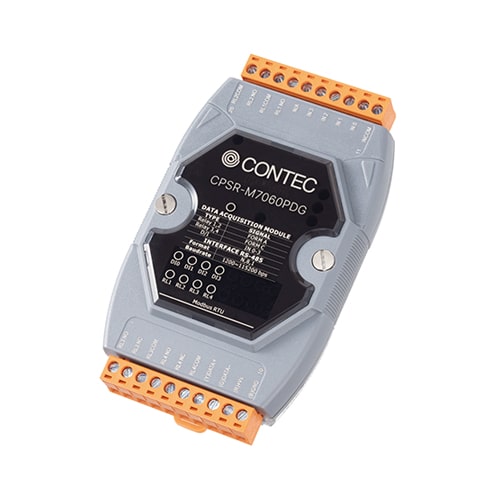

CPSR-M7060PDG

Overview / Features

The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.

• RS-485 based Robust remote I/O module for Modbus-RTU protocol : 4ch Power Relay Output / 4ch Digital Input
  • RS-485 (Modbus-RTU) based remote I/O with 4ch Power Relay Output / 4ch Digital Input. Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable.
• Over-voltage Protection
  • Digital input channels feature high overvoltage protection, preventing the module from being damaged by high voltage spikes or incorrect wiring.
• Dual watchdog function monitors module and communication failures
  • Dual watchdog function monitors module and communication failures. If an operational failure of the module is detected, it will automatically reset and return the signal output to the set value. If the communication command from the host is interrupted, the signal output will also return to the set value. This prevents damage and abnormal operation of the sensors/actuators connected to the module.
• Robust ESD/EFT and surge resistance
  • Passes IEC 61000-4-5 surge testing, IEC 61000-4-2 ESD testing, and IEC 61000-4-4 EFT testing. Robust design resists noise, spikes, and high-voltage electrostatic discharges.
