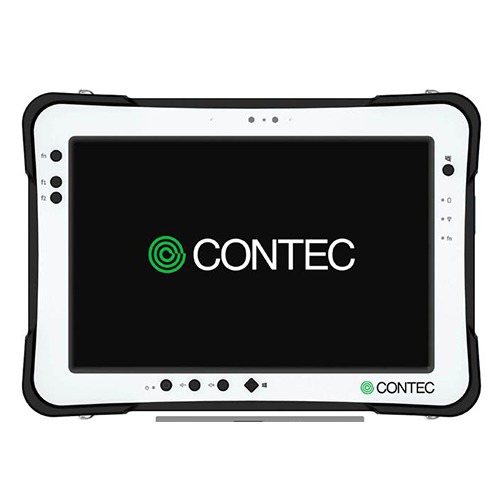

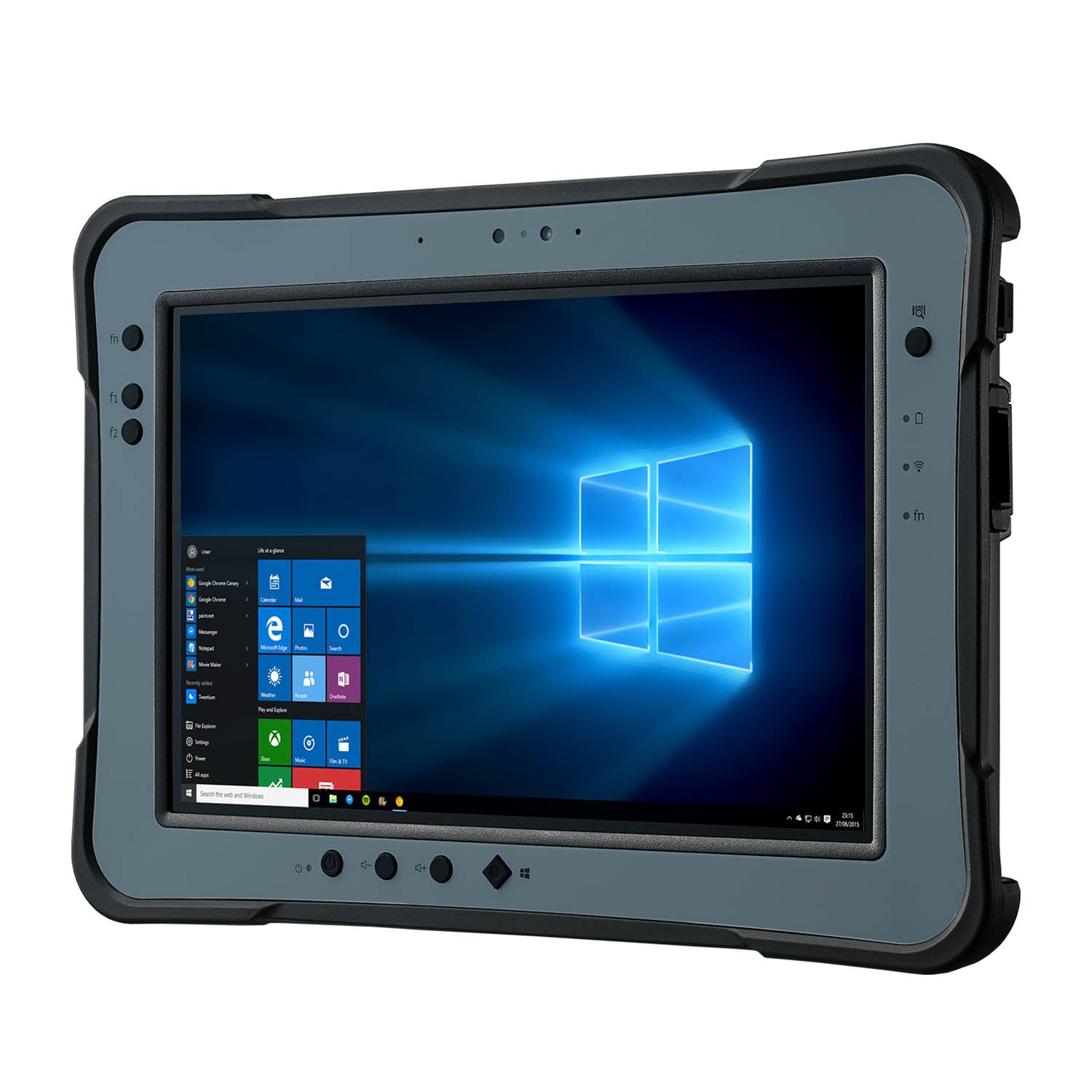

Don’t let its stylish design fool you, Contec’s CT-RU101PA 10.1” tablet is ready to take on the harshest environments. This fully rugged tablet features IP65 protection from dust and liquids, MIL-STD-810G rated drop, shock, and vibration resistance, and a wide temperature range of -4 to 122 degrees Fahrenheit. The CT-RU101PA is the first in its class with a 1000 nit sunlight-readable display for optimal performance outdoors. Powered by the Intel Atom E3827 processor and equipped with the latest communication technology, The CT-RU101PA offers the performance and durability you need for optimal productivity, anytime, anywhere.
| Mounting | Tablet |
|---|
| Supported OS | Windows 10 IoT Enterprise LTSB 2016 64-bit; Linux |
|---|
| CPU Generation (Development code) | |
|---|---|
| Processor | Atom E3827 |
| CPU socket | – |
| Memory | 4GB |
| RAS | – |
| GPU | |
| AI Performance | |
| Security | TCG TPM 1.2 |
| LCD size | 10.1-inch |
|---|---|
| LCD resolution | 1920 x 1200 (WUXGA) |
| Touch panel resolution | – |
| Detection method | Projected capacitive touch (PCAP) |
| Video | 1x Mini HDMI |
|---|---|
| LAN | – |
| Wireless | Wireless LAN IEEE802.11ac/a/b/g/n; Bluetooth 4.0 |
| Audio | 1x Headphone / microphone combo |
| I/O | 1x USB3.2 Gen1 (USB3.0); 1x USB2.0; 1x RS-232C |
| Memory card | 1x Micro SD slot |
| Expansion bus | 1x Docking connector (12-pin) |
|---|---|
| Drive bay | – |
| Input voltage | 100 to 240VAC (AC adapter) |
|---|
| Operating temperature | -20 to 50°C (-4 to 122°F) |
|---|---|
| Storage temperature | -30 to 70°C (-22 to 158°F) |
| Standards & Certifications | CB; CE; FCC Class B |
| Model | Description | Certification |
|---|---|---|
| CT-RU101PA-W4100 | 10.1″ Rugged Tablet w/Windows 10 IoT, 128 GB SSD, 4GB RAM |
– |
| CT-RU101PA-W4200 | 10.1” Rugged Tablet w/Windows 10 IoT, 256 GB SSD, 4GB RAM |
– |
| CT-RU101PA-W410L | 10.1” Rugged Tablet w/Windows 10 IoT, 128 GB SSD, 4GB RAM, 4G LTE |
– |
| CT-RU101PA-W420L | 10.1” Rugged Tablet w/Windows 10 IoT, 256 GB SSD, 4GB RAM, 4G LTE |
– |
| CT-RU101PA-X4XXX | Additional configuration options (Part numbers defined by option selection) |
– |
