CTP-4D_img1CTP-4D_img1

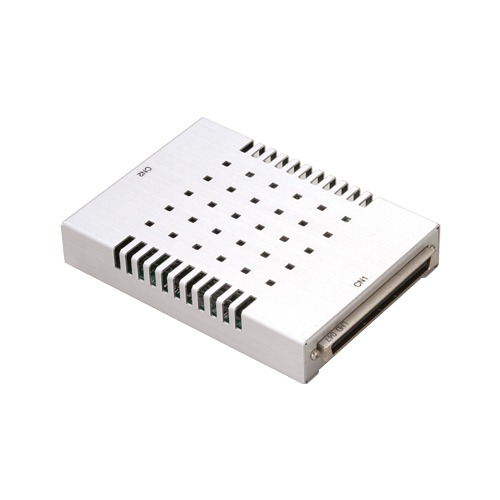

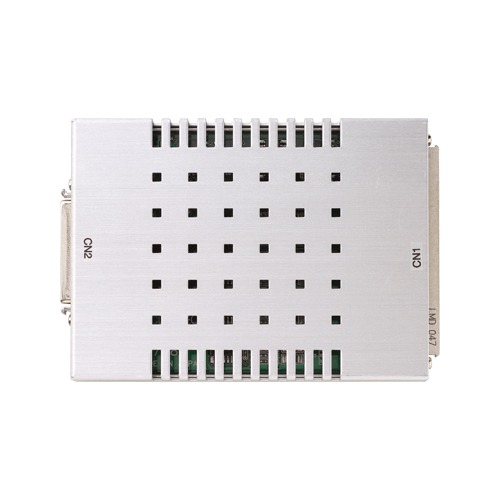

CTP-4D

  • Differential input enabled with the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB).
  • Designed to be compact to stay out of the way on the desktop
  • Lightweight design based on the aluminum housing
  • Easy to replace the PCI bus board CNT32-8M(PCI)
  • Built-in power LED

Data Sheet PDF

SKU: CTP-4D Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a differential input conversion terminal for the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB) a 32-bit high-speed up/down counter card manufactured by CONTEC.This product enables differential input by being connected between the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB) and a differential input device. (The CTP-4D requires a CNT-68M/50M optional cable for connection with the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB).)

  • Differential input enabled with the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB).
    • Capable of differential input by connection to the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB).
  • Designed to be compact to stay out of the way on the desktop
    • Small terminal box available by the side a notebook PC. Highly portable as the cable is connector-removable.
  • Lightweight design based on the aluminum housing
    • Lightweight aluminum housing contributing to portability
  • Easy to replace the PCI bus board CNT32-8M(PCI)
    • Connecting the CTP-4D to the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB) provides the equivalent interface to the CNT32-8M(PCI). Using a half-pitch 96-pin connector designed with pin compatibility (*1)
      *1: Not completely compatible
  • Built-in power LED
    • The built-in power LED tells whether the CTP-4D is powered.

Specifications

Specifications
Expansion Accessory Module
Function –
Connector (module)
Connector (external)

Ordering Informations

Ordering Information
Model Description Certification
CTP-4D Termination Panel with Differential Receivers for Counter Input
  • CE marking
  • VCCI
Options
Cable
Item Item Name
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
Terminal
Item Item Name
EPD-96 Screw Terminal (M3.5 x 96)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
