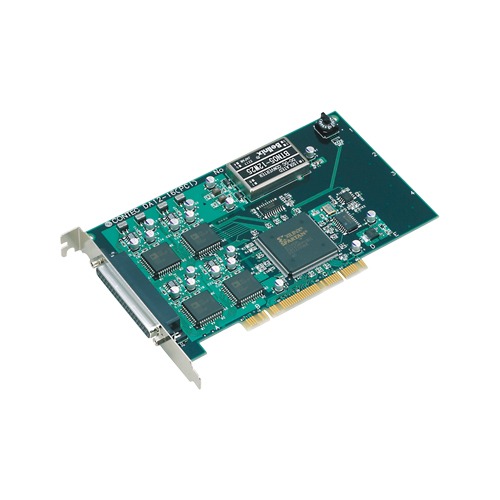

DA12-16(PCI)

  • Support for unipolar and bipolar output ranges
  • Two output modes selectable
  • Capable of updating the output voltage using a generating clock
  • Safety design to adjust output voltage to 0V when power supply is turned on
  • Optional units
  • Windows/Linux support device driver

Data Sheet PDF

SKU: DA12-16(PCI) Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

These boards are PCI bus compliant interface boards that performs digital-to-analog conversion. The < DA12-16(PCI) > performs D-A conversion using 16 output channels at a conversion speed of 10µsec [100KSPS] and a resolution of 12bit. Windows/Linux device driver is supported with this product.

  • Support for unipolar and bipolar output ranges
    • An output range can be set for each channel by software.
  • Two output modes selectable
    • The board offers a choice of two output modes selectable. One updates only the output voltage of a specified channel and the other updates the output voltages of all channels.
  • Capable of updating the output voltage using a generating clock
    • The board can update the output voltage periodically using the internal generating clock or in synchronization with external events using an external generating clock.
  • Safety design to adjust output voltage to 0V when power supply is turned on
    • To prevent the unstable voltage and the connected device of D/A converter from fault and malfunctions when the power supply is turned on, the circuit is designed to adjusts output voltage of the analog output to 0V.
  • Optional units
    • Using optional units facilitates connections.
  • Windows/Linux support device driver
    • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector D-SUB 37-pin (Female)
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory –
Output Channels 16-ch
Output Range ±10V; ±5V; 0 to 10V
DAC Resolution 12-bit
Update rate 10μsec (max.)
Output Buffer Memory –
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DA12-16(PCI) Analog Output PCI Card /16ch AO(12bit 100ks/s)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-AIO(98/PC) Windows version Analog I/O Driver
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(LNX) Linux General-purpose I/O Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Applications
Item Item Name
C-WaveformGenerator Waveform Generator for Windows
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
