DA16-16(LPCI)L

Overview / Features

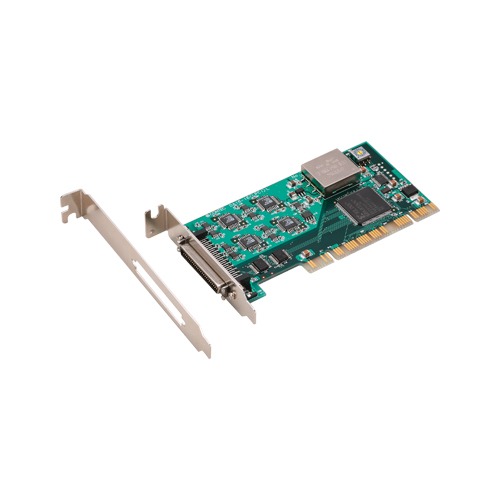

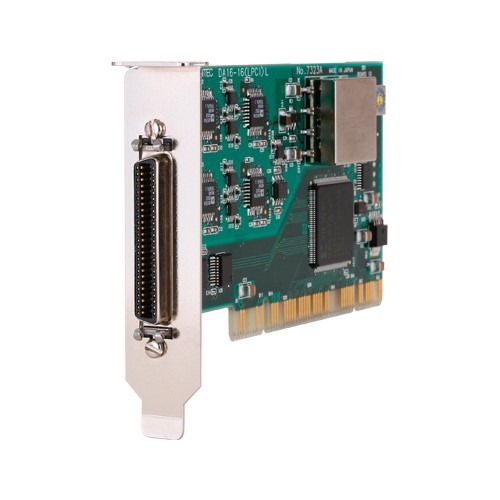

DA16-16(LPCI)L is a PCI-compliant interface board that incorporates high-precision 16-bit analog outputs, digital I/O(TTL level, 4 channels each), and a counter (32bit, 1ch) function. DA16-16(LPCI)L supports a low-profile size slot and, if replaced with the included bracket, supports a standard size slot, too. DA16-16(LPCI)L can make your space-saving PC into a cost-effective analog output system. Using bundled API function library package [API-PAC(W32)], you can create Windows application software for this board in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++. With plug-ins for the dedicated libraries, the board also supports MATLAB and LabVIEW.

• Multi-channels analog output
  • DA16-16(LPCI)L is capable of outputting 16 channels.
• Rich set of basic functions
  • Compact system providing high-precision analog outputs. Analog output control signal (3 channels), digital inputs (TTL level 4 channels), digital outputs (TTL level 4 channels), and a counter (32-bit TTL level 1 channel) other than analog output are provided.
• Substantial control functions
  • Capable of analog output in either time-based mode or external-signal synchronous mode.
• Filter function facilitating external signal connection
  • Digital filters provided for external control analog output signals, preventing chattering.
• Software-based calibration
  • Setting and calibrating the analog output can be performed completely by software. No tricky jumper settings are required. You can also set your own calibration data in place of the default data set at the factory and use different calibration data depending on the operating conditions.

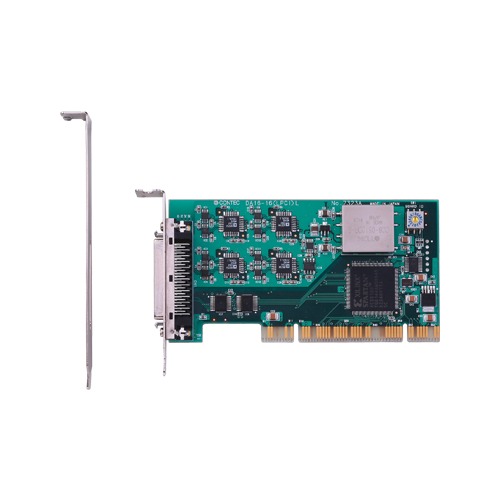

• Exchangeable low-profile and standard PCI slots
  • Support for both of low-profile and standard PCI slots (interchangeable with a bundled bracket).
