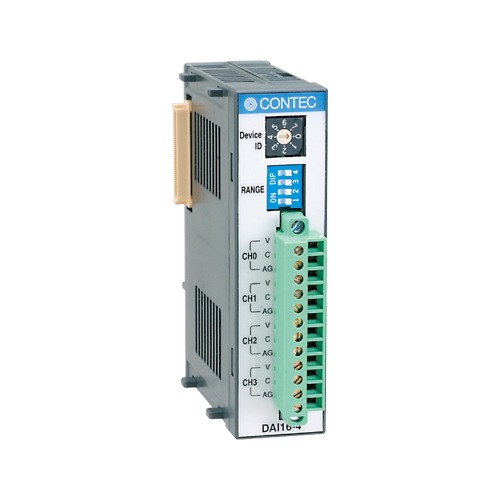

DAI16-4(FIT)GY

Data Sheet PDF

SKU: DAI16-4(FIT)GY Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

DAI16-4(FIT)GY can be used for controlling external devices by converting digital data from F&eIT-series controller module into either voltage or current-based analog signals. The isolation between external signals and the controller module prevent electrical influence of external signal sources to the controller.

    • High precision analog output module with 16-bit resolution.
    • The output range is common to each channel and can be set up from two kinds of output ranges, ±10V and 0-20mA.
    • A rotary switch allows you to set device IDs to help you keep track of device numbers.
    • The two-piece connector with a flange prevent unexpected unplugging.
    • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.

Specifications

Specifications
Add-on Module
Series F&eIT
Bus Specification F&eIT stack bus
Size F&eIT 1U
Used Connector –
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory –
Output Channels 4-ch
Output Range ±10V; 0 to 20mA
DAC Resolution 16-bit
Update rate 10μsec (max.); 20μsec (max.)
Output Buffer Memory –
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS –
  • *The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).

Ordering Informations

Replacement Product
Model Definition
Analog Output CONPROSYS nano Series I/O Module 2ch (16bit, Voltage / Current) / Inter-channel Isolation
CPSN-AO-1602LC		 For details, please see datasheets and manuals.
Ordering Information
Model Description Certification
DAI16-4(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] Analog Output F&eIT I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
  • CE marking
  • FCC compliant
  • VCCI
Options
Coupler module
Item Item Name
CPU-CA20(FIT)GY F&eIT Remote I/O – Communication Coupler / 1x LAN
Embedded Computer
Item Item Name
BX-320 Box Computer BX-300 – Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply
Extended Warranty Service
Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
