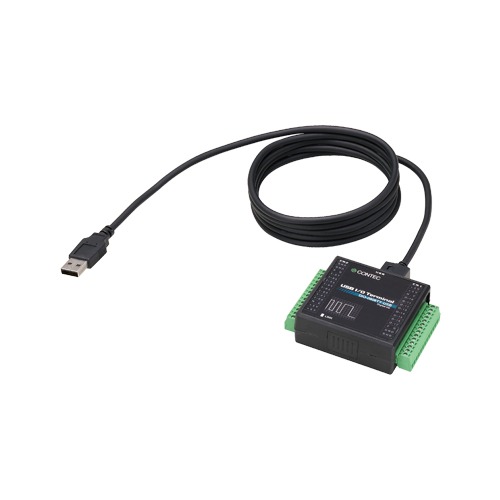

DIO-0808TY-USB

  • Unisolated TTL level input, unisolated open-collector output
  • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
  • Surge absorption diodes are built in the I/O circuit for surge voltage protection.
  • Easy-to-wire terminal connector adopted
  • Windows/Linux support device driver

Data Sheet PDF

SKU: DIO-0808TY-USB Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a USB 2.0 compliant terminal that extends the digital signal I/O functions of a PC. Being bus-powered, it does not need an external power supply.DIO-0808TY-USB has the 8ch of unisolated TTL level input and 8ch of unisolated open-collector output. In addition, it uses a protection circuit (surge protection) as its I/O circuit as well as an easily-wired terminal connector. Windows/Linux device driver is supported with this product.

  • Unisolated TTL level input, unisolated open-collector output
    • DIO-0808TY-USB has the 8ch of unisolated TTL level input whose response speed is 200nsec and 8ch of unisolated open-collector output. The output rating is max. 28VDC, 40mA per ch.
  • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
    • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at High Speed (480 Mbps). Not necessary to power this product externally as the bus power of USB is used.
  • Surge absorption diodes are built in the I/O circuit for surge voltage protection.
    • DIO-0808TY-USB has a surge absorption diode connected to the +5V output pin at each I/O point to protect against surge voltages.
  • Easy-to-wire terminal connector adopted
    • Adoption of terminal connector (with screws) enables to achieve easy wiring.
  • Windows/Linux support device driver
    • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

Specifications

Specifications
Add-on Module
Series USB Y(Mobile)
Bus Specification USB
Size Y Type
Used Connector 2x Screw terminal block 14-pin
Digital I/O
Input Channels 8-ch
Output Channels 8-ch
Bi-directional I/O Channels –
Response Time (Input) 200nsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Non-isolated TTL level input (Negative logic)
Output Circuit Non-isolated TTL open-collector output (Negative logic)
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DIO-0808TY-USB Digital I/O USB I/O unit 8ch/8ch (non-isolated 5VDC-TTL) – the Y series
  • CE marking
  • FCC compliant
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-USBP(WDM) Windows version Driver Library for USB module
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Other Accessories
Item Item Name
BRK-USB-Y Bracket for USB I/O Terminal products
CN6-Y14 14 pin Terminal connector(screw type) 6/set
