DIO-1616HN-USB

Overview / Features

This product is an USB 2.0-compliant digital I/O unit that provides the input and output function of digital signal from the USB port of PC. This product is compatible with digital input and output signals at 5 – 50VDC which features 16 channels of opto-coupler isolated inputs (compatible with current sink output) and 16 channels of opto-coupler isolated open-collector outputs(compatible with current sink type), equipped with output transistor protection circuit (surge voltage protection and over current protection).Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall. Windows/Linux device driver is supported with this product.

• Opto-coupler isolated input (compatible with current sink output)
  • This product has 16 channels of opto-coupler isolated inputs, compatible with current sink output of 5 – 50 VDC whose response time is 200μsec. 16 channels share one common. As the power to run the opto-couplers is supplied internally, no external power supply is required.
• Opto-coupler isolated open-collector outputs (compatible with current sink type)
  • This product has 16 channels of opto-coupler isolated open-collector outputs (current sink type) whose response time is 200μsec, supporting driver voltages of 5- 50 VDC for I/O. The output rating is max.100mA per channel. Common terminal provided per 8 channels, capable of supporting a different external power supply.
• Compatible to USB 2.0/USB 1.1
  • Compatible to USB 2.0/USB 1.1 and capable to achieve high speed transfer at High Speed (480 Mbps)

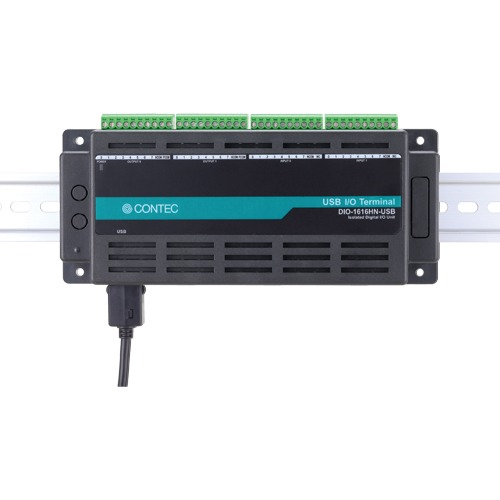

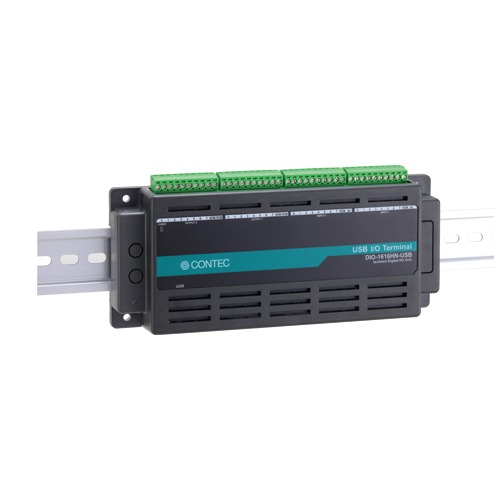

• Diverse installations such as screw fastening, magnet, DIN rail are possible
  • Installation on the floor / wall /ceiling is possible by screw fastening, magnet, rubber feet, etc. In addition, DIN rail mounting mechanism is equipped as standard with the product, making it easy to install the product within the panel or the device.
• Easy-to-wire terminal connector adopted
  • Adoption of terminal connector (with screws) enables to achieve easy wiring.
• Windows/Linux support device driver
  • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
