DIO-1616LN-ETH

Overview / Features

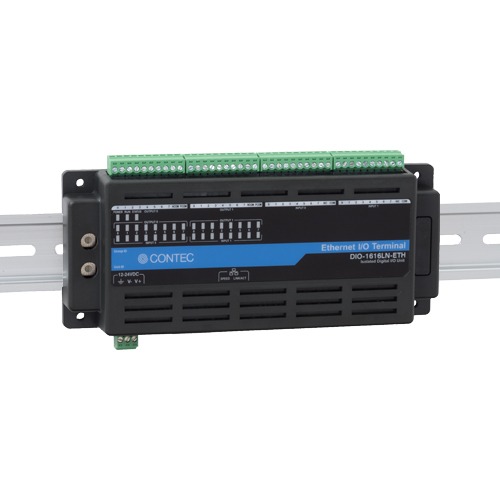

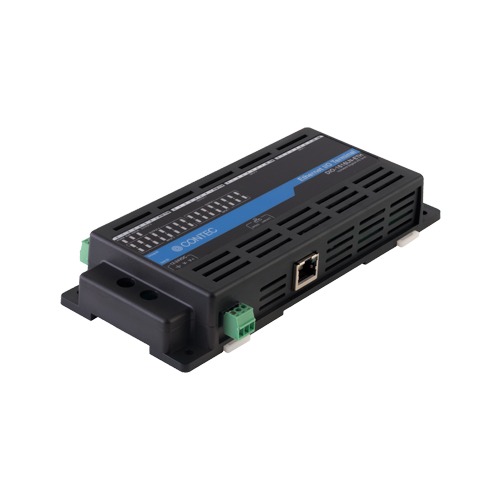

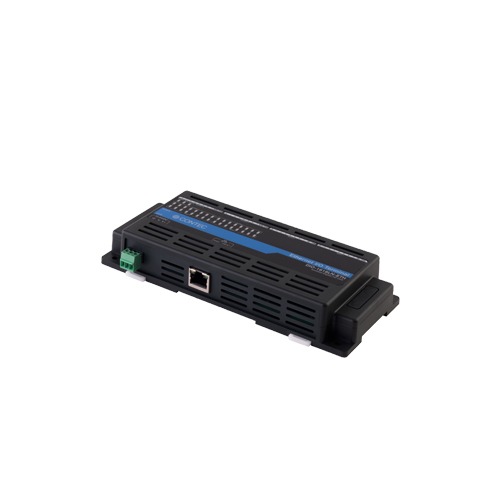

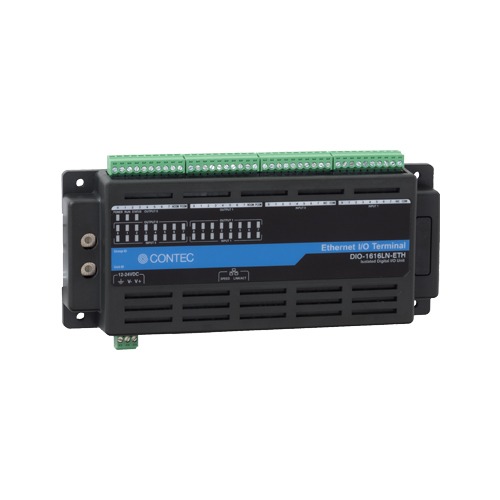

This product is an Ethernet-compliant digital I/O Unit used to provide a digital signal I/O function from PC LAN port.Digital signals can be input and output at 12 – 24VDC.16 channels of Optocoupler isolated inputs (compatible with both current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type) are equipped. Up to eight channels are used as an interrupt. Also, including a digital filter function which prevents wrong recognition of input signals, output transistor protection circuit (surge voltage protection and over current protection), and the fail-safe function which changes outputting to the specified pattern when communication errors occur.Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail.Windows/Linux device driver is supported with this product.

• 16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type).
  • This product has the 16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (current sink type) whose response speed is 200μsec.
• Digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software. *1
• Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
  • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, Over-current protection circuits are fitted to each group of 8channels outputs. The output rating is max. 60VDC, 100mA per channel.
• Operable in a wide range of 12 – 24VDC power
  • The product can be operated in the various environments with a wide range power supply of 12 – 24VDC. In addition, the FG terminal is equipped in the power connector.
• Windows/Linux support device driver
  • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• Windows/Linux compatible driver libraries are supported.
  • Using the digital I/O driver makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • *1 this is available in firmware version 1.10 or higher
