DIO-1616LN-USB

Overview / Features

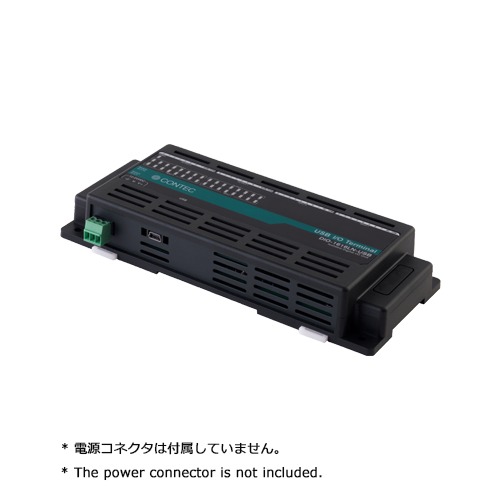

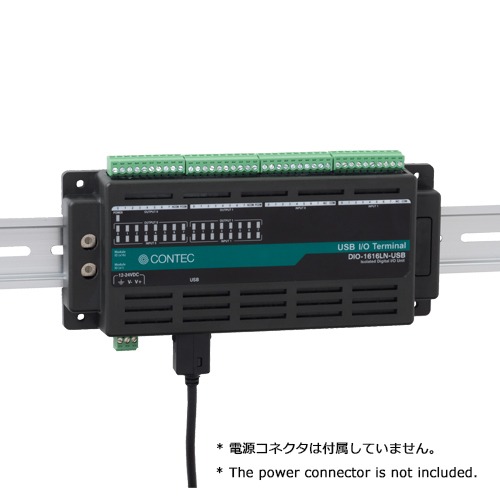

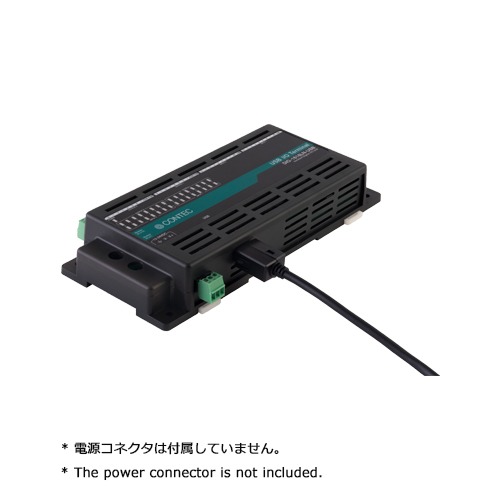

This product is an USB 2.0-compliant digital I/O unit that provides the input and output function of digital signal from the USB port of PC. Digital signals can be input and output at 12 – 24VDC.16 channels of Opto-coupler isolated inputs (compatible with both current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (compatible with current sink type) are equipped. Up to eight channels are used as an interrupt. Also, including a digital filter function which prevents wrong recognition of input signals, and output transistor protection circuit (surge voltage protection and over current protection). Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall.　Windows/Linux device driver is supported with this product.

• 16 channels of Opto-coupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (compatible with current sink type)
  • This product has the 16 channels of Opto-coupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (current sink type) whose response time is 200μsec.
• 8 input signals can be used as interrupt request signals
  • You can use 8 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
• Equipped with digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
• Zener diode for surge voltage protection and the circuit for overcurrent protection
  • Zener diodes are connected to the output circuits to protect against surge voltages. In addition, the output circuit, it attaches the overcurrent protection circuit at the output 8-channel unit. The output rating is max. 60VDC, 100mA per channel.
• Operation with USB bus power/12 – 24VDC power supply
  • As the product can operate with USB bus power, power supply from the external source is unnecessary. Operation with a wide range power supply of 12 – 24 VDC is also available when the product is used such as with a laptop computer to save power consumption or when the environment requiring a separate power supply, such as using a non-power connected USB hub. Therefore, it can be used in various equipment configuration and power supply environment. In addition, the FG terminal is equipped in the power connector.
• Windows/Linux support device driver
  • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
