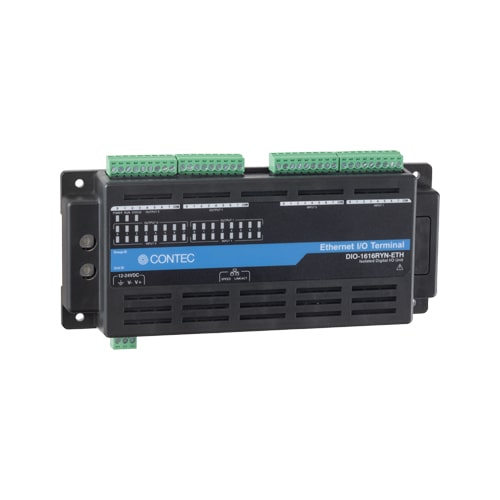

DIO-1616RYN-ETH_img1DIO-1616RYN-ETH_img1

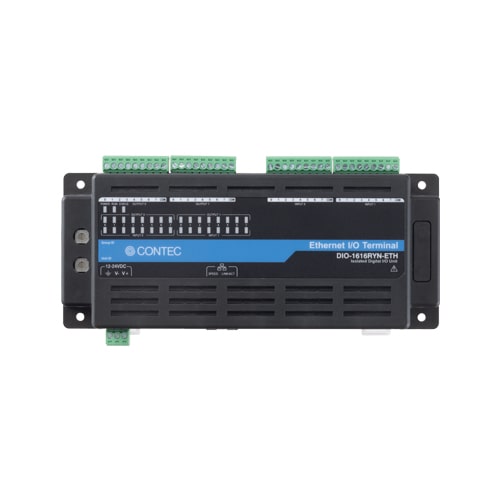

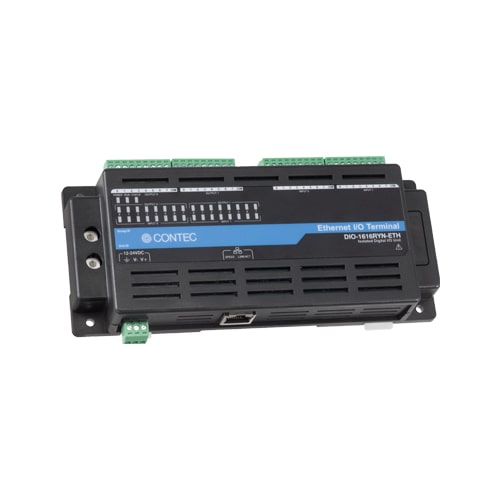

DIO-1616RYN-ETH

  • Optocoupler isolated input (compatible with current sink output/current source output) and solid-state relay output
  • Digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • Operable in a wide range of 12 – 24VDC power
  • Usable as an Ethernet-based digital I/O
  • Windows/Linux support device driver

Data Sheet PDF

SKU: DIO-1616RYN-ETH Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

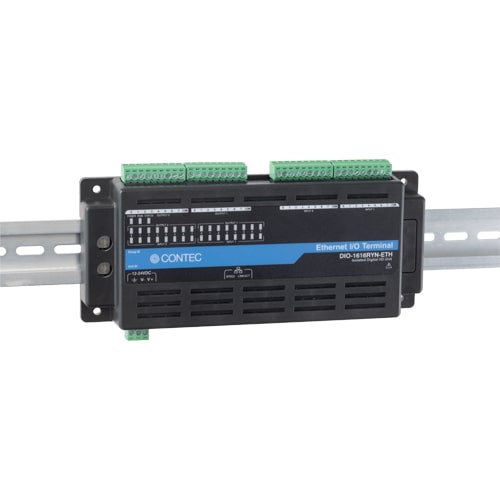

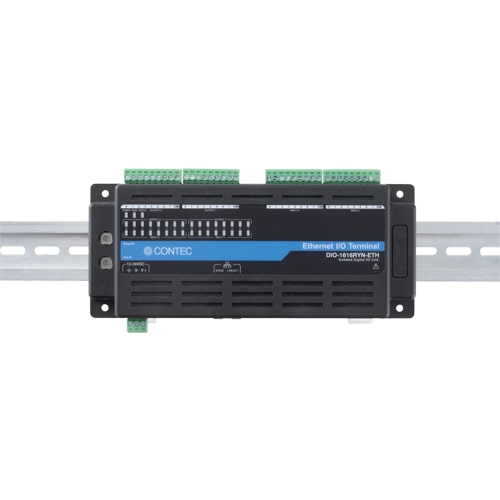

This product is an Ethernet-compliant digital I/O Unit used to provide a digital signal I/O function from PC LAN port.This product is compatible with the digital signal I/O with high voltage (input 12 – 24VDC, output 120VAC/DC) and features 16 optocoupler isolated inputs (compatible with current sink output/current source output) and 16 solid-state relay outputs. Up to eight channels are used as an interrupt. In addition, the digital filter function to prevent wrong recognition of input signals is provided.Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail.Windows/Linux device driver is supported with this product.

  • Optocoupler isolated input (compatible with current sink output/current source output) and solid-state relay output
    • This product has the 16 of optocoupler isolated input (compatible with current sink output/current source output) whose response time is 200µsec and 16 of solid-state relay output whose response time is 1.0msec. Supporting driver voltages of 12 – 24VDC for input and 120VAC/DC for output with high voltage. (12 – 24VDC external circuit power supply is required separately.)
  • Digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
  • Operable in a wide range of 12 – 24VDC power
    • The product can be operated in the various environments with a wide range power supply of 12 – 24VDC. In addition, the FG terminal is equipped in the power supply connector.
  • Usable as an Ethernet-based digital I/O
    • Monitoring digital I/O is easy as it can be controlled remotely through Ethernet.
  • Windows/Linux support device driver
    • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

Specifications

Specifications
Add-on Module
Series Ethernet N
Bus Specification Ethernet
Size N Type
Used Connector 4x 3.5mm-pitch 9-pin 2-piece terminal block
Digital I/O
Input Channels 16-ch
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 1msec (max.)
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) to 120VAC / VDC
Input Circuit Opto-isolated input (for both current sink and source output)
Output Circuit Semiconductor relay output
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DIO-1616RYN-ETH N Series for Ethernet Digital I/O Unit with High Voltage Isolation
  • CE marking
  • FCC compliant
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
Development Support Tools
Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
Power Supply / AC Adapter
Item Item Name
CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
POA201-10-2 AC adaptor (12V,1A)
Other Accessories
Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)
