DIO-1616RYX-USB

Overview / Features

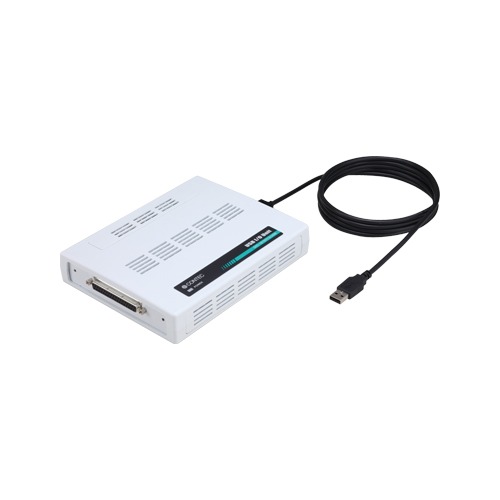

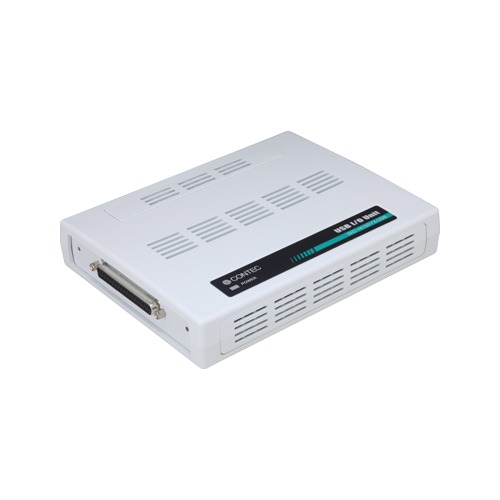

This product is an USB2.0-compliant digital I/O unit used to provide a digital signal I/O function on a PC. This product is compatible with the digital signal I/O with high voltage (input 12 – 24VDC, output 120VAC/DC) and features 16 optocoupler isolated inputs (compatible with current sink output/current source output) and 16 semiconductor-relay outputs. You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.

• Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
  • This product has the 16 of optocoupler isolated input (compatible with current sink output/current source output) whose response speed is 200µsec and 16 of semiconductor-relay output whose response speed is 1.0msec. Supporting driver voltages of 12 – 24VDC for input and 120VAC/DC for output with high voltage. (12 – 24VDC external circuit power supply is required separately.)
• Optocoupler and semiconductor-relay bus isolation
  • As the USB (PC) is isolated from the input and output interfaces by optocoupler and semiconductor-relay, this product has excellent noise performance.
• You can use 16 input signals as interrupt request signals.
  • You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.

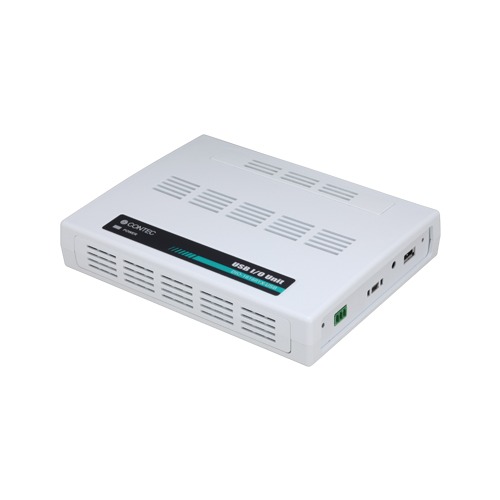

• USB HUB function
  • This product has the USB HUB function. Max. 4 DIO-1616RYX-USB can be used in 1 USB port of PC. When you use 4 or more DIO-1616RYX-USB, you can do by connecting DIO-1616RYX-USB to the another USB port of PC side.
• Connectors are compatible with PCI/PCI Express bus-compatible board
  • As there is compatible with PIO-16/16RY(PCI) and DIO-1616RY-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. The specification of the input part is from 12 – 24VDC fixation however. If the system of this product is created by the digital I/O driver API-DIO(98/PC), it is required to replace it with API-DIO(WDM).
• Windows compatible driver libraries are provided.
  • Using the digital I/O driver API-DIO(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
