DIO-1616T-LPE

Overview / Features

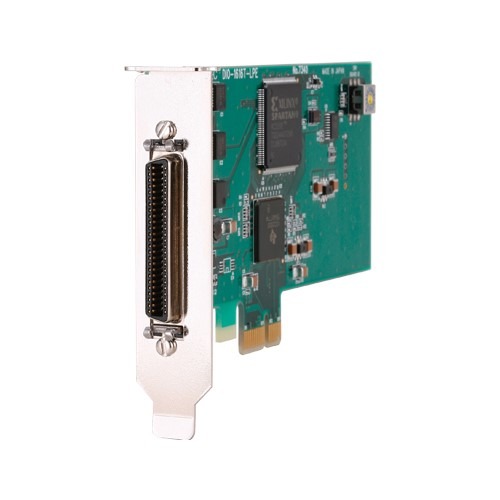

This product is a PCI Express bus-compliant interface card for input/output of unisolated TTL-level digital signals. This product can input and output up to 16 channels. You can use all of the input signals as interrupt inputs. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

• Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
• You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• The rated output signal is up to 30VDC, 40mA per one signal.

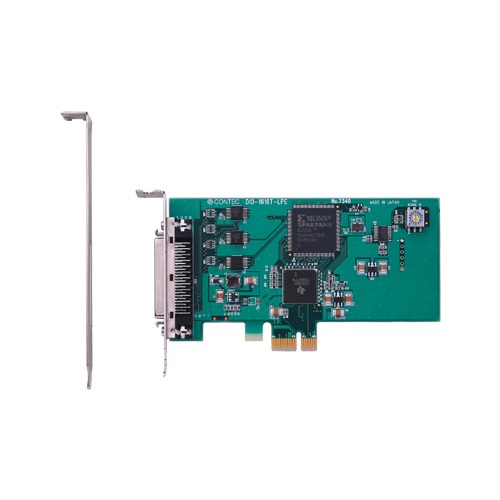

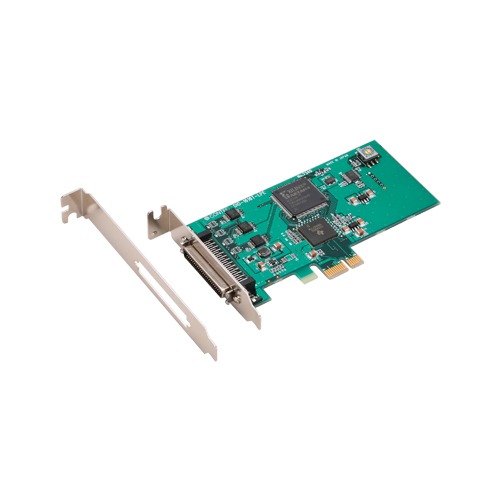

• Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
• Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.
