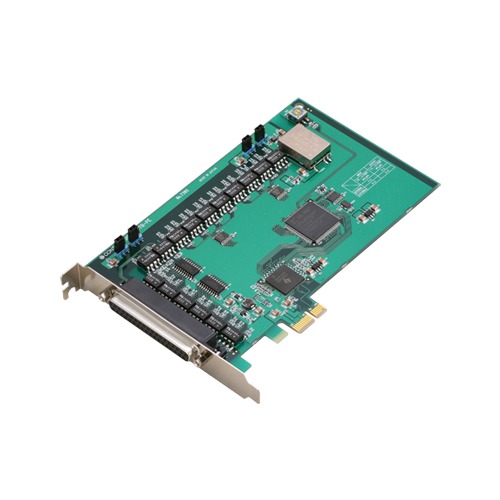

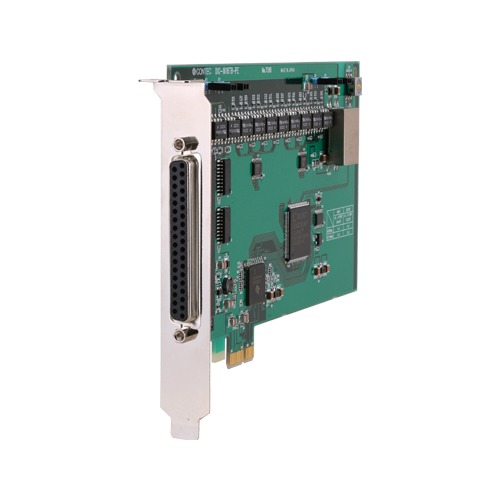

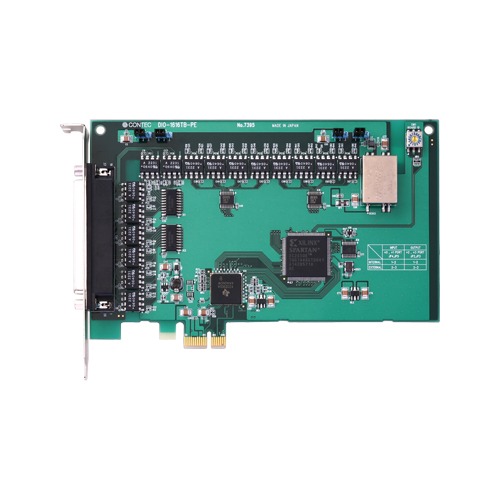

DIO-1616TB-PE

Overview / Features

This product is a PCI Express card used to provide a digital signal I/O function on a PC. This product features TTL level input 16ch, TTL level output 16ch opto-coupler isolated type with an internal 5VDC power supply that does not require external power. You can use all of the input signals as interrupt inputs. In addition, digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

• Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output
  • This product has the opto-coupler isolated TTL level input 16ch and output 16ch whose high speed response speed is 1µsec.
• Opto-coupler bus isolation
  • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
• Power supply (5VDC 600mA) for driving opto-coupler
  • Power supply (5VDC 600mA) for driving opto-coupler is equipped. Whether or not to use the internal power supply can be specified by jumpers in blocks of 16ch.
• You can use all of the inpur signals as interrupt events.
  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
• Windows/Linux compatible driver libraries are attached
  • Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
