DIO-3232T-PE

Overview / Features

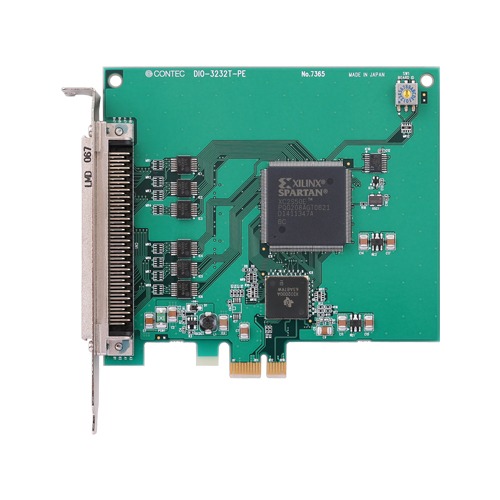

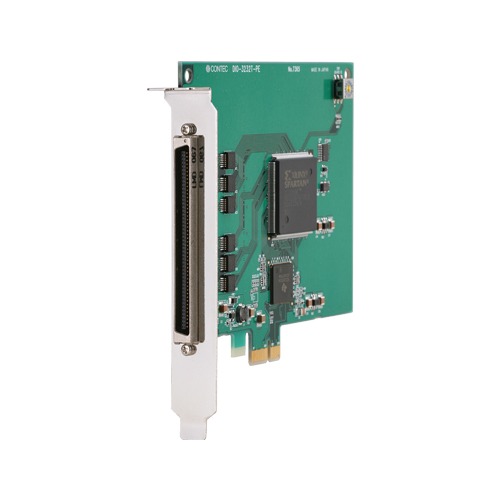

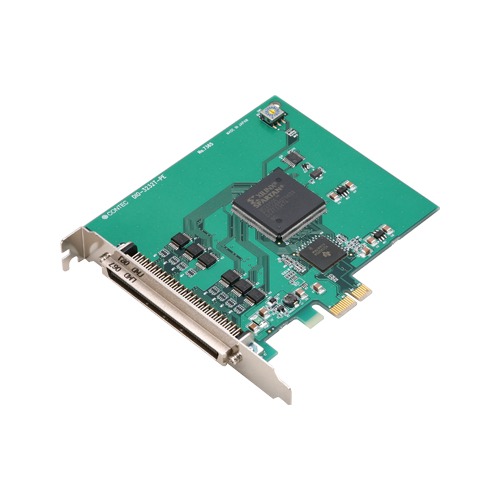

This product is a PCI Express bus-compliant unisolated digital I/O card for input/output of digital signals (TTL level). Unisolated TTL level input 32ch and unisolated open collector output 32ch are provided, and all input signals can be used as interrupts. In addition, digital filter function to prevent wrong recognition of input signals is provided. With the driver libraries for Windows/Linux supplied as standard, applications with CONTEC hardware features fully utilized can be created. LabVIEW is supported with a plug-in of dedicated libraries.

• Unisolated TTL level input, unisolated open-collector output
  • 32ch of unisolated TTL level input and 32ch of unisolated open-collector output with a response time of 200nsec. Output rating: max 30VDC, 40mA per pin.
• You can use 32 input signals as interrupt request signals.
  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
• Windows/Linux compatible driver libraries are attached
  • Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• Functions and connectors are compatible with PCI compatible card PIO-32/32T(PCI)H
  • The functions are same with PCI compatible card PIO-32/32T(PCI)H. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
