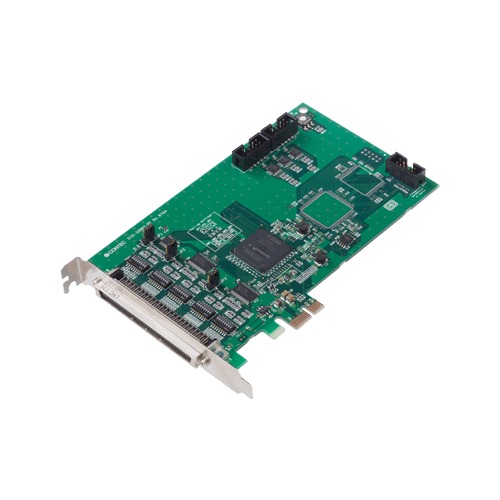

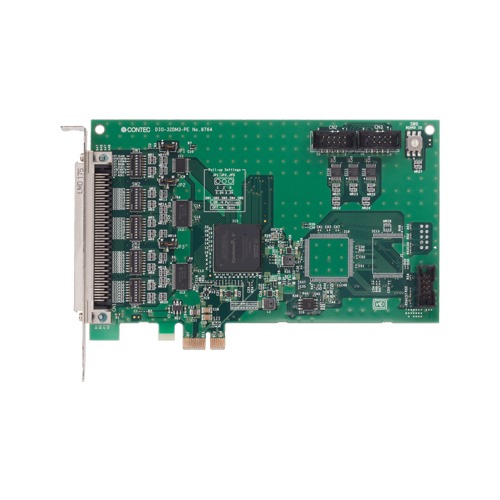

DIO-32DM3-PE

Overview / Features

This product is a PCI Express bus-compliant interface card that supports transfer by bus mastering and performs input/output between the external device and digital signal. This product features unisolated LVTTL level (Operating voltage : 3.3V) I/O 32channels and you can select input / output in 16 units. Bus master transfer makes it possible to sample quickly large data with transfer rate at 50MHz maximum. It can be used as a pattern generator that outputs arbitrary digital patterns at high speed. It can also be used as a general-purpose I/O card when bus mastering is not used.  Windows driver is bundled with this product.  Using the dedicated library VI-DAQ makes it possible to create each application for LabVIEW.

• 32channels of unisolated LVTTL level I/O (32 input channels / each 16 channels for I/O / 32 output channels are selected.)
  • This product has 32channels (operating voltage 3.3VDC, positive logic) of unisolated LVTTL level I/O whose response speed is 20nsec. They can be used for 32bit input, 16bit input plus 16bit output, or for 32bit output. Other than I/O bits, this product has the control signals (clock, start, stop and handshake signal (REQ, ACK) that can control starting and stopping the sampling (input) / generating (output)).
• Sampling and generating with transfer rate at 50MHz maximum
  • Bus master transfer makes it possible to sample (input) or generate (output) large data with transfer rate at 50MHz maximum. As the sampling and generating features have their own bus mastering blocks each made up of two independent channels, the card can generate 16 signals while sampling 16 signals.
• A synchronization control connector is provided for synchronized control of multiple cards.
  • A synchronization control connector is provided for synchronized control of up to 16 cards. It is also easy to synchronize operation with other CONTEC cards that have a synchronization control connector.
• You can use Max. 4 input signals as interrupt request signals at the time of using the general-purpose I/O.
  • You can use up to 4 input signals as interrupt request signals and also disable or enable the interrupt in bit units at the time of using the general-purpose I/O.
• Windows compatible driver libraries are attached and the LabVIEW is supported by a plug-in of dedicated library.

  • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    Using the dedicated library makes it possible to make a LabVIEW application.

• Functions and connectors are compatible with PCI compatible card PIO-32DM(PCI) and PCI Express compatible cards DIO-32DM2-PE and DIO-32DM-PE.
  • The functions same with PCI compatible card PIO-32DM(PCI) and PCI Express compatible cards DIO-32DM2-PE and DIO-32DM-PE are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
