DIO-48D-LPE

Overview / Features

This product is a PCI Express bus-compliant interface card that can perform the input/output of LVTTL level bi-directional digital signal. This product can input and output up to 48 channels. You can select the input/output by the application software in eight signals units. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

• This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
• You can use all of the input signals (Max. 48) as interrupt inputs. You can also disable or enable the interrupt in bit units and select the interrupt edge.
• This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
• Application software enabling the switching of input and output settings

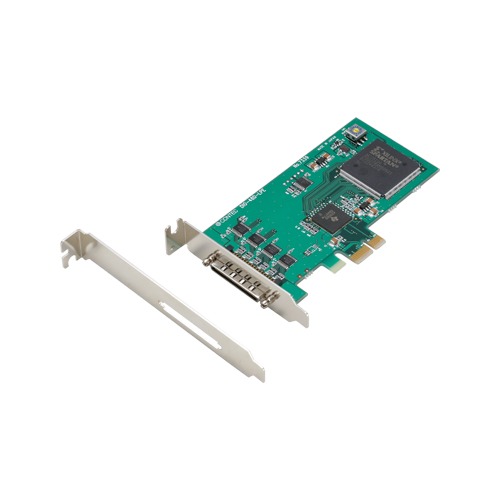

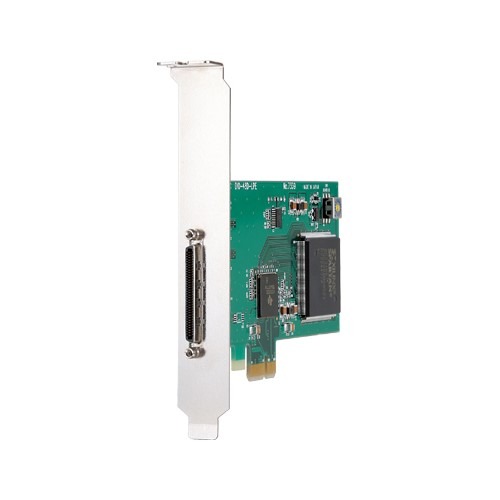

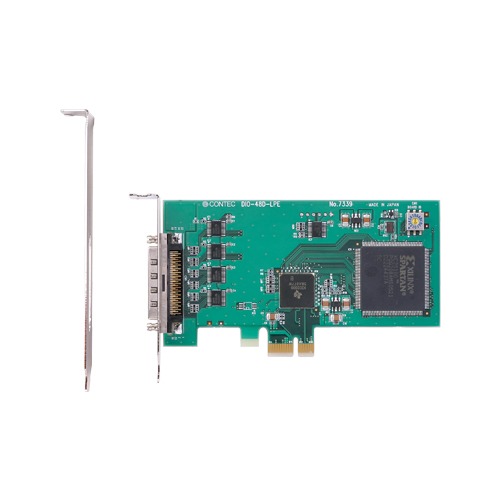

• Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
