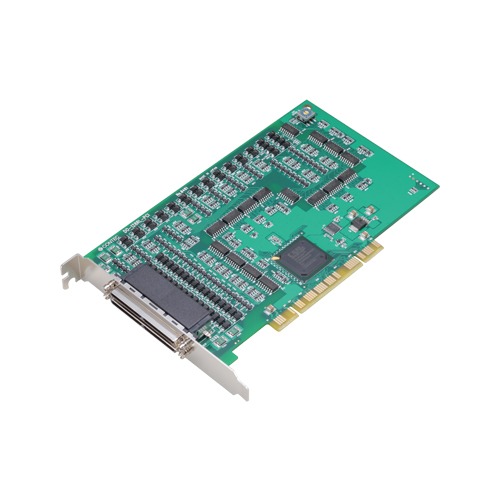

DO-128RL-PCI_img1DO-128RL-PCI_img1

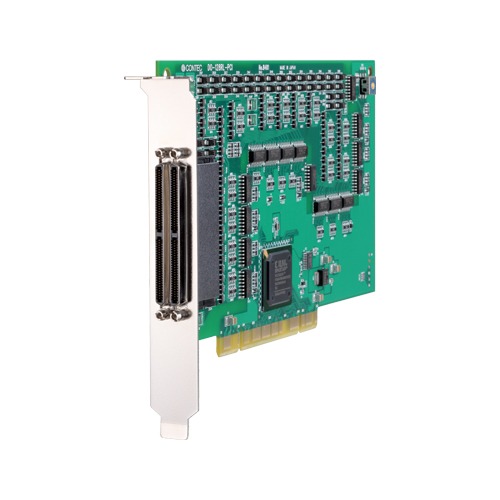

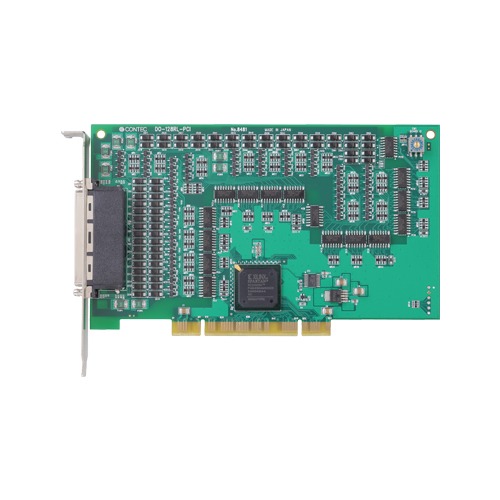

DO-128RL-PCI

  • Opto-coupler isolated output (current source type)
  • Opto-coupler bus isolation
  • Windows/Linux compatible driver libraries are attached.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

SKU: DO-128RL-PCI Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a negative-common typed PCI bus-compliant interface board used to provide a digital signal output function on a PC. This product can output digital signals at 12 – 24VDC. This product features 128 opto-coupler isolated outputs (current source type). Equipped with the output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

  • Opto-coupler isolated output (current source type)
    • This product has opto-coupler isolated output 128channels (current source type) whose response speed is 200µsec. Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for output
  • Opto-coupler bus isolation
    • As the PC is isolated from the output interfaces by opto-couplers, this product has excellent noise performance.
  • Windows/Linux compatible driver libraries are attached.
    • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
    • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, polyswitches are fitted to each group of 8channels outputs for over-current protection. The output rating is max. 35VDC, 100mA per channel.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
    • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector 2x 0.8mm-pitch 100-pin (Female)
Digital I/O
Input Channels –
Output Channels 128-ch
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) 200μsec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) 12 to 24VDC
Input Circuit –
Output Circuit Opto-isolated output (source current type)
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DO-128RL-PCI Digital output PCI card 128ch (negative-common isolated 12 – 24VDC)
  • VCCI
  • CE marking
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
VI-DAQ VI Library of data acquisition for LabVIEW
Cable
Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
Terminal
Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-4A Screw Terminal (M2.6 x 37)
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)
Other Accessories
Item Item Name
CCB-96 Connector conversion card
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
