DO-16(FIT)GY

Data Sheet PDF

SKU: DO-16(FIT)GY Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

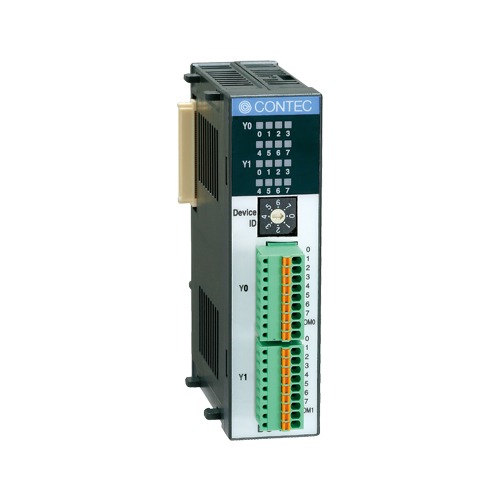

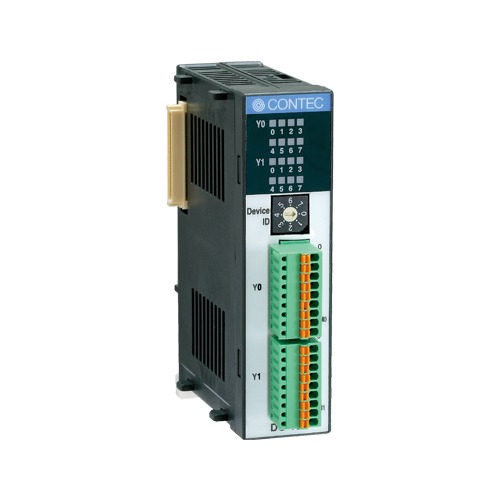

The Module perform to output digital signals to external devices, can be used by connecting it to F&eIT series controller modules . DO-16(FIT)GY can be connected to DO-16(USB)GY, respectively, to extend I/O channels. Opto-isolation prevent electrical influence from external devices to the host PC. DO-16(FIT)GY has 16 output channels per module.

    • DO-16(FIT)GY has 16 channel digital signal output, treating 8 channel as a group and handling two groups per operation.
    • Isolated I/O operations using an opto-coupler improves noise immunity.
    • A rotary switch allows you to set device IDs to help you keep track of device numbers.
    • Screwless connector plug allows you to easily attach and detach wires without using any special tools.
    • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.

Specifications

Specifications
Add-on Module
Series F&eIT
Bus Specification F&eIT stack bus
Size F&eIT 1U
Used Connector –
Digital I/O
Input Channels –
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) 1msec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) 12 to 48VDC
Input Circuit –
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply –
Supported OS
Supported OS –
  • *The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).

Ordering Informations

Replacement Product
Model Definition
Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DO-08L
Digital output CONPROSYS nano Series I/O module 16ch (isolated 12 to 24VDC)
CPSN-DO-16L
 For details, please see datasheets and manuals.
Ordering Information
Model Description Certification
DO-16(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] Digital output F&eIT I/O module 16ch (isolated 12 – 48VDC)
