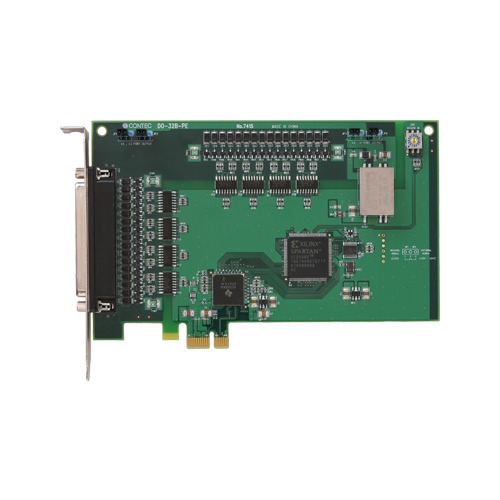

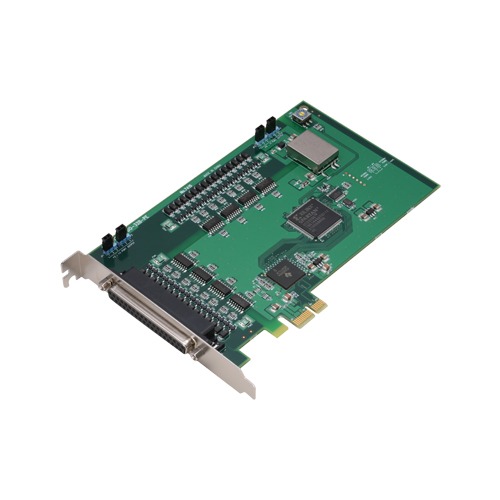

DO-32B-PE

  • Opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • Power for opto-coupler operation (12VDC 240mA) supplied internally
  • Windows/Linux support device driver
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.

Data Sheet PDF

SKU: DO-32B-PE Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a PCI Express bus-compliant interface board for output of digital signals. This product can output digital signals at 12 – 24VDC. DO-32B-PE features 32 opto-coupler isolated open-collector outputs (current sink type). In addition, this product is equipped with a power supply for driving opto-couplers (12VDC) and output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.

  • Opto-coupler isolated open-collector output (current sink type)
    • DO-32B-PE has the opto-coupler isolated open-collector output 16channels (current sink type) whose response speed is 200?sec. Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O
  • Opto-coupler bus isolation
    • As the PC is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
  • Power for opto-coupler operation (12VDC 240mA) supplied internally
    • As the power(12VDC 240mA) to run the opto-couplers is supplied internally, no external power supply is required. The use of jumpers allows you to decide whether you want to use the internal or external power supply for every 16 points.
  • Windows/Linux support device driver
    • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
    • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, polyswitches are fitted to each group of 8channels outputs for over-current protection. The output rating is max. 35VDC, 100mA per channel.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI Express
Size Short Size
Used Connector D-SUB 37-pin (Female)
Digital I/O
Input Channels –
Output Channels 32-ch
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) 200μsec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) 12 to 24VDC
Input Circuit –
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply 12VDC
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DO-32B-PE Digital output PCI Express card 32ch (12VDC on-board power supply isolated 12 – 24VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
