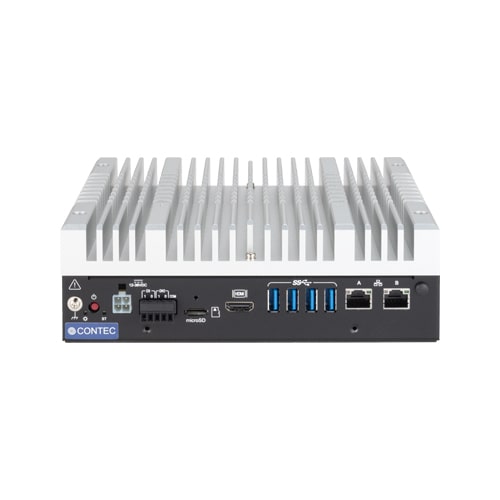

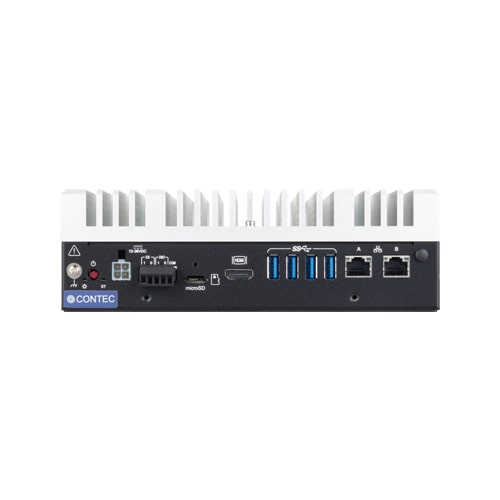

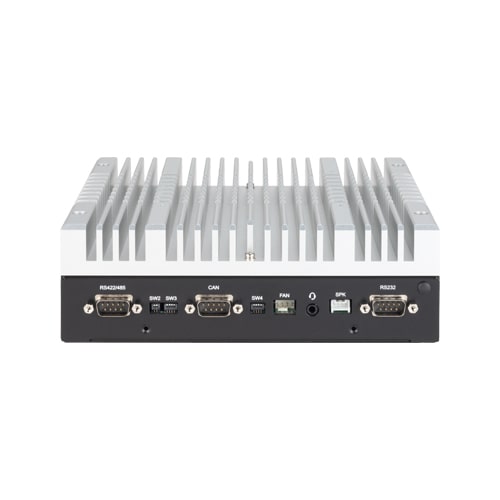

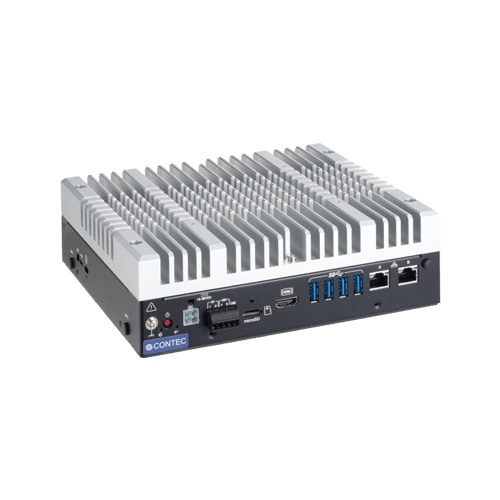

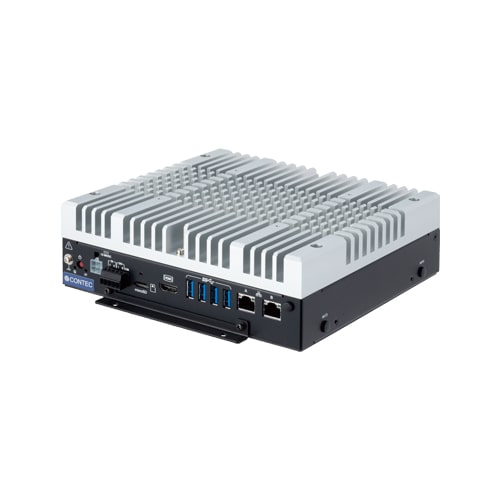

DX-M2300

Overview / Features

This product is an industrial computer suitable for AI inference processing equipped with the NVIDIA® Jetson AGX Orin™ module. It is equipped with two Gigabit LAN ports, an HDMI port, four USB ports, MicroSD, general I/O ports, a serial port, CAN port, Audio and an RTC (real-time calendar/clock) for flexible installation in addition to advanced environmental resistance. The computer also comes standard with a high-capacity NVMe storage for stress-free use in practical applications. The software environment is the same as the developer kit, with Ubuntu pre-installed, and the JetPack SDK is available, allowing you to run applications created with the developer kit.

Usage Examples

AMR (Autonomous Mobile Robot)

Traffic Count

Intrusion Detection

Predictive Maintenance

• Edge AI accelerator equipped with NVIDIA Jetson AGX Orin
  • This product is equipped with NVIDIA Jetson AGX Orin that offers the highest performance in the Jetson series. As an edge AI computer, it can be used in fields that need powerful AI inference processing capabilities.
• Standard-equipped with NVMe storage
  • The standard-equipped high-capacity NVMe storage offers reliable operation with no need to worry about the capacity of the Jetson Xavier NX module’s eMMC.
• “Power failure protection system” features power-off without OS shutdown
  • Using the JetPack/L4T version provided by our company, it supports power failure protection function.It can be used by enabling the power-off protection function in BIOS and Linux settings.
• Highly reliable and long-life components
  • The high-reliability long-life design utilizes accumulated knowledge about BOX-PC embedded computers. The DX-M2300 can be reliably used for high-availability systems.
• Two Gigabit LAN ports for alternating connections between different network layers
  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• Supports ambient temperatures from -20°C to +60°C(-4 to +140°F)
  • This product achieves stable operation in a wide temperature range of -20 to +60°C(-4 to +140°F)*1. (an airflow of 0.7m/s) and it can be used in the various environment.
    • *1 Derating occurs due to the load conditions. See the “Installation Requirements” in this manual for details.
