DX-U1200

Overview / Features

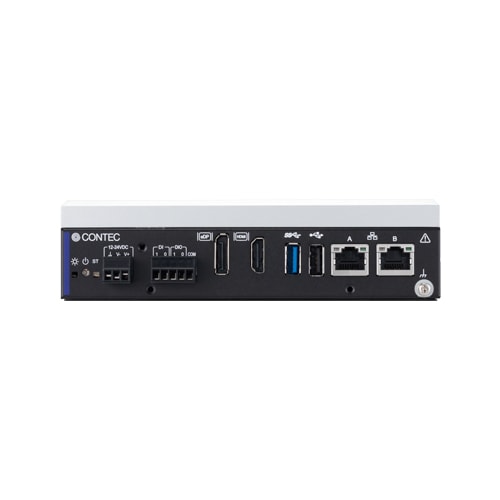

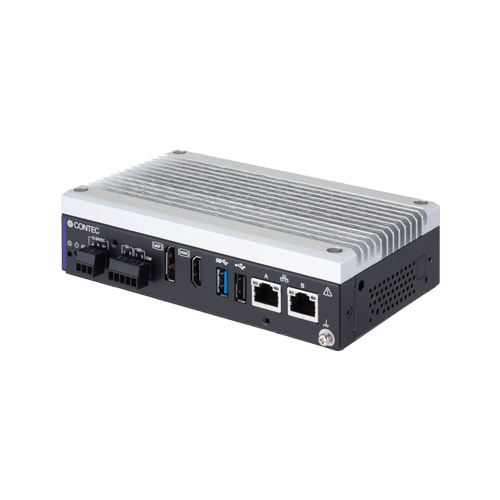

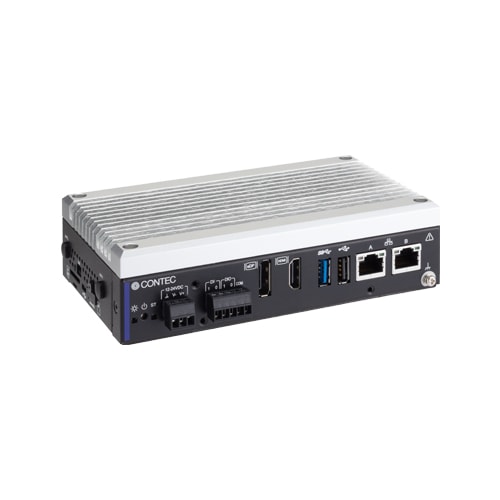

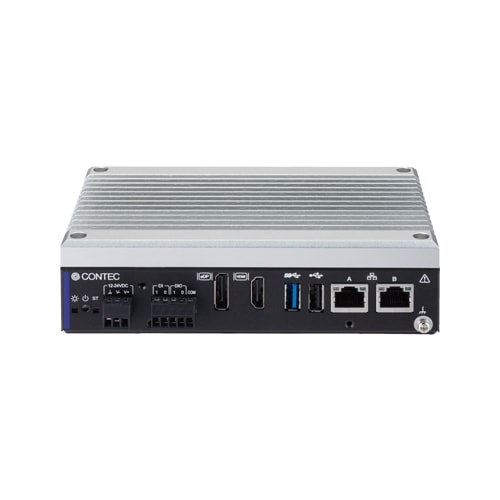

This product is an industrial computer suitable for AI inference processing equipped with the NVIDIA® Jetson Xavier NX™ module. The product contains Gigabit LAN×2, HDMI, embedded DisplayPort(eDP), USB×2, general-purpose I/O, and RTC. It features installation flexibility and environmental resistance so that practical applications can be realized with confidence.Similar to the developer kit for the software environment, Ubuntu is pre-installed and JetPack SDK is available to run applications created with the developer kit.Simple dustproof models include sheet metal (pre-attached) and connector caps to prevent dust and dirt from entering the product vents.Expansion slot models include a low-profile PCI Express slot x1 for expanded functionality by means of CONTEC’s rich variety of low-profile PCI Express cards.

Usage Examples

Intrusion Detection

Traffic Count

Predictive Maintenance

Visual Inspection System

• Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
  • Equipped with NVIDIA® Jetson Xavier NX™ , the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Long-term supply and maintenance
  • Long-term product supply is provided, as well as repair and maintenance services. This can significantly reduce life cycle costs, including verification and modification man-hours that were needed with every model change.
• Highly reliable and long-life components
  • The high-reliability long-life design utilizes accumulated knowledge about BOX-PC embedded computers. The DX-U1200 can be reliably used for high-availability systems.
• Two Gigabit LAN ports for alternating connections between different network layers
  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• Flexible installation

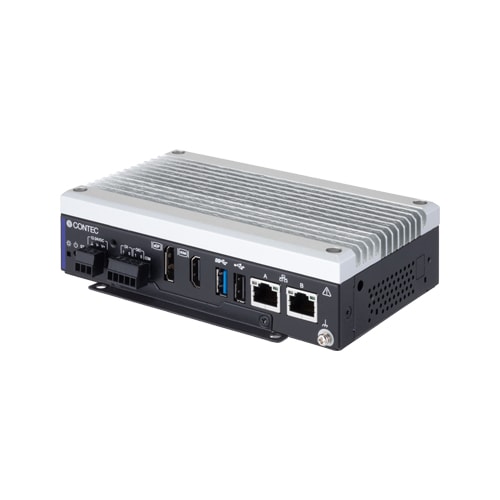

  • With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or on the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
• Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C
  • • Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C*
      * With 0.7m/s airflow; Derating may be necessary depending on the usage environment.
