DX-U1200P1

Overview / Features

This product is a general-purpose industrial edge AI computer with an emphasis on practicality equipped with an NNVIDIA® Jetson Xavier NX™ module. Equipped with two Gigabit LAN ports, an HDMI port, two USB ports, a general I/O port, and an RTC (real-time calendar/clock), and with flexible installation and environmental resistance, it can be comfortably used for practical applications.As for the software environment, Ubuntu comes pre-installed just like the Jetson developer kit, and the NVIDIA JetPack™ SDK is available, so you can run applications created with the developer kit.This product also equipped with a PCI Express(x1) slot and enables expanded functionality by means of CONTEC’s rich variety of low-profile PCI Express cards, including analog input and serial communication cards.

Usage Examples

Intrusion Detection

Traffic Count

Predictive Maintenance

Visual Inspection System

• Edge AI accelerator equipped with NNVIDIA® Jetson Xavier NX™ module.
  • Equipped with NVIDIA® Jetson Xavier™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Long-term supply and maintenance
  • Long-term product supply is provided, as well as repair and maintenance services. This can significantly reduce life cycle costs, including verification and modification man-hours that were needed with every model change.
• Highly reliable and long-life components
  • The high-reliability long-life design utilizes accumulated knowledge about BOX-PC embedded computers. The DX-U1200P1 can be reliably used for high-availability systems.
• Two Gigabit LAN ports for alternating connections between different network layers
  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• Flexible installation

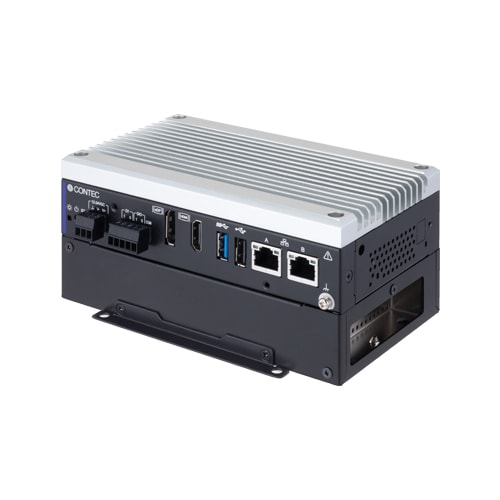

  • With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or on the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
• Equipped with a PCI Express(x1) slot
  • This product also equipped with a PCI Express(x1) slot and enables expanded functionality by means of CONTEC’s rich variety of low-profile PCI Express cards, including analog input and serial communication boards.
