DX-U1220

Overview / Features

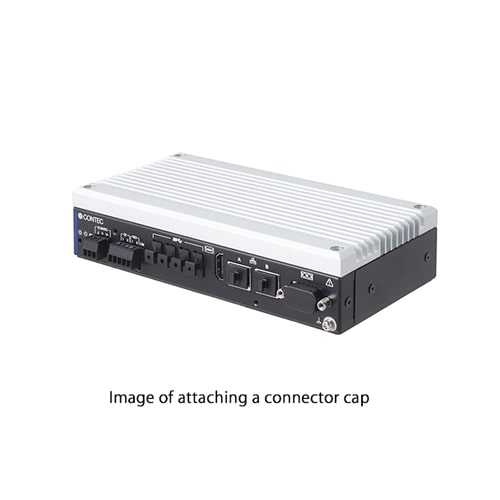

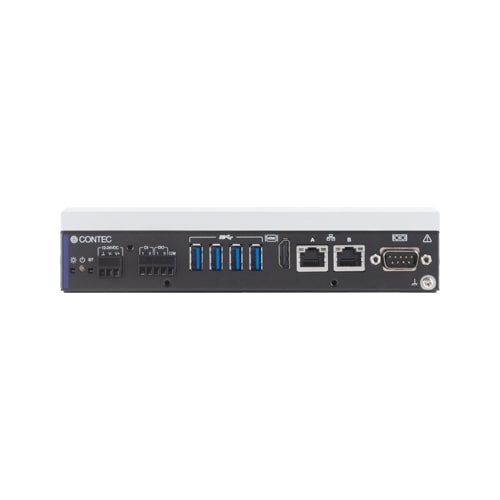

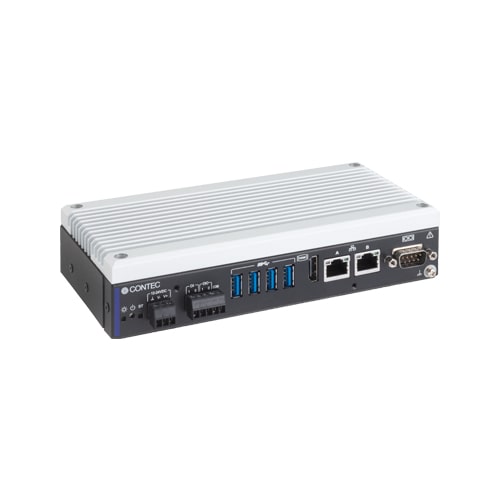

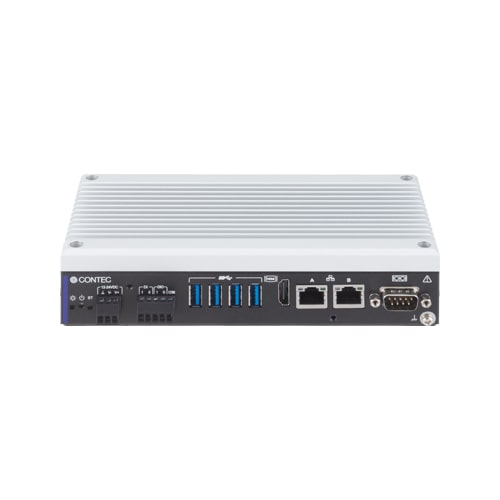

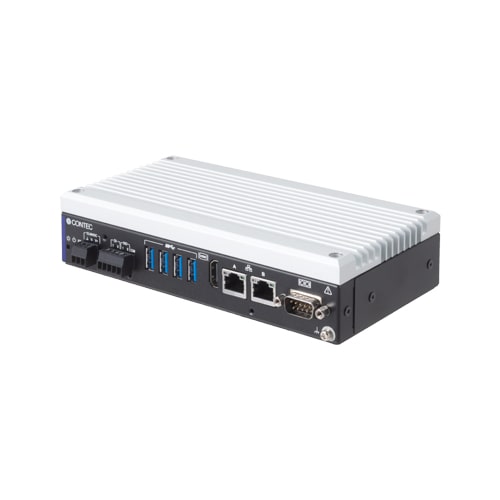

This product is an industrial computer suitable for AI inference processing equipped with NVIDIA® Jetson Xavier NX™ module. Equipped with Gigabit LAN x 2, HDMI, USB x 4, general-purpose I/O, serial port, and RTC, it achieves flexible installation and environmental resistance. It also comes standard with large-capacity NVMe storage, so you can use it for practical applications with peace of mind.As a simple dustproof measure, a metal plate (already attached to this product) and a connector cap are included to prevent dust from entering through the ventilation holes.The software environment is the same as the developer kit, with Ubuntu pre-installed, and the JetPack SDK is available, allowing you to run applications created with the developer kit.

Usage Examples

Intrusion Detection

Traffic Count

Predictive Maintenance

Visual Inspection System

• Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
  • Equipped with NVIDIA® Jetson Xavier NX™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Equipped standard NVMe 256GB storage
  • The standard-equipped high-capacity NVMe 256GB storage offers reliableoperation with no need to worry about the capacity of the Jetson XavierNX™ module’s eMMC.
• Equipped with various I/F such as USB3.2 Gen2 4 ports
  • Multiple USB cameras can be connected simultaneously for visual inspection of production lines. Equipped with a serial port (RS-232C/422A/485 1 port) convenient for connecting peripheral devices and sensors.
• Two Gigabit LAN ports for alternating connections between different network layers
  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• “Power failure protection system” features power-off without OS shutdown
  • Using the JetPack/L4T version provided by our company, it supports power failure protection function.It can be used by enabling the power-off protection function in BIOS and Linux settings.
• Supports ambient temperatures from -20°C to 60°C
  • This product achieves stable operation in a wide temperature range of -20 to +60°C (an airflow of 0.7m/s) and it can be used in the various environment. (Note that the temperature range is between -20°C and 50°C when the product is used with the PCI Express Low Profile card).
    • *1There is derating depending on the load condition. For details, refer to Installation Conditions.
